Front Side Door Window Channel Retainer Replacement

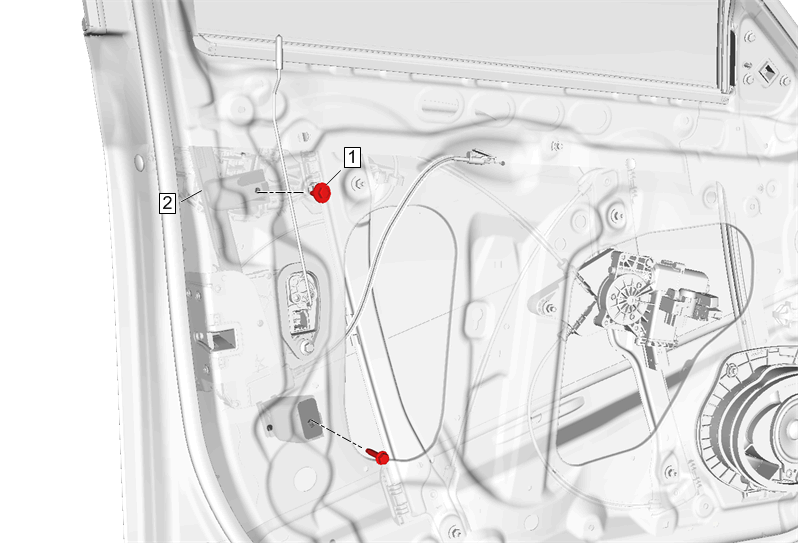

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Front Side Door Trim Replacement Front Side Door Water Deflector
1	Front Side Door Window Channel Retainer Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Channel Retainer Procedure Release the electrical harness with retainer from the channel retainer.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Front Side Door Trim Replacement
Front Side Door Water Deflector

Front Side Door Window Channel Retainer Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)

Front Side Door Window Channel Retainer
Procedure
Release the electrical harness with retainer from the channel retainer.
