Front Side Door Window Regulator Motor Replacement

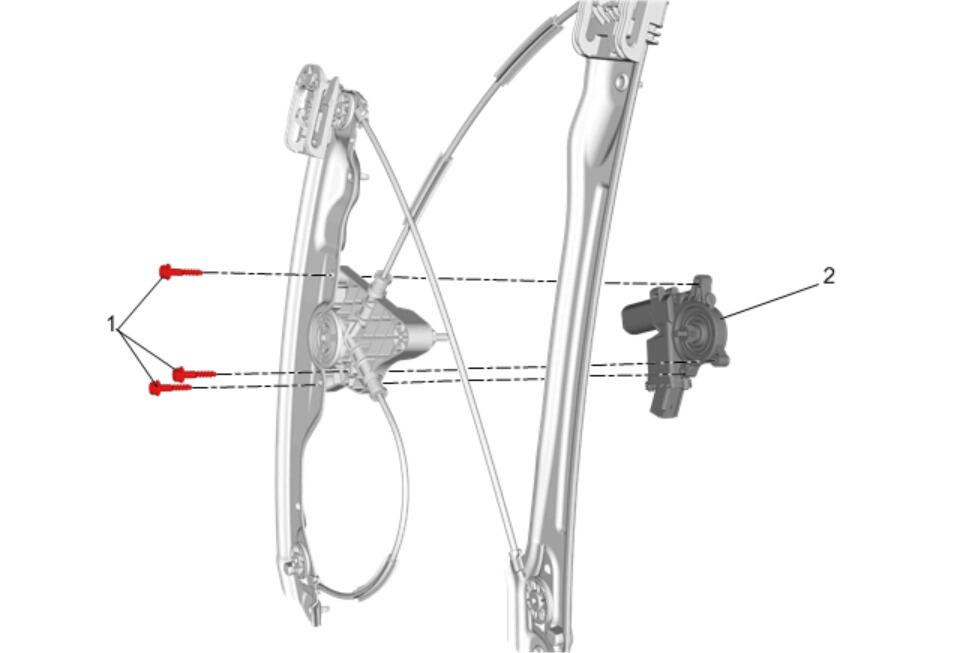

Callout	Component Name
Preliminary Procedures Place the front side door window in the full up position. Front Side Door Trim Replacement Front Side Door Water Deflector - Remove
1	Front Side Door Window Regulator Motor Screw [3x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Side Door Window Regulator Motor Procedure Disconnect the electrical connector. NOTE: Inspect the window for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Front Side Door Window Regulator Motor Screw [3x]

CAUTION:

Tighten
10 N.m (89 lb in)

Front Side Door Window Regulator Motor
Procedure
Disconnect the electrical connector.

NOTE:

Inspect the window for proper operation before installing the door trim.
