Front Side Door Window Replacement

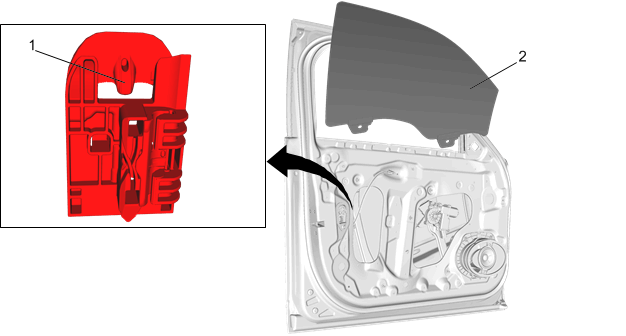

GM4250021
Callout Component Name
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

CAUTION:

Refer to Paint Damage Caution .

Preliminary Procedures

  1. Front Side Door Armrest Bracket Replacement
  2. Front Side Door Window Garnish Molding Replacement
  3. Front Side Door Window Inner Sealing Strip Replacement
  4. Remove the water deflector.
  5. Front Side Door Window Channel Retainer Replacement
1 Front Side Door Window Retainer [2x]

Procedure

  1. Use masking tape to tape the window in the full up position to the door frame.
  2. Using the proper tool release the window regulator guide from the window.
  3. Lower the window regulator full down.
  4. Remove the masking tape from the window.
  5. Tilt the window downward in the front, pull up on the back of the window and pull it out from the door frame.
2 Front Side Door Window
Inspect the window for proper operation before installing the door trim panel.
