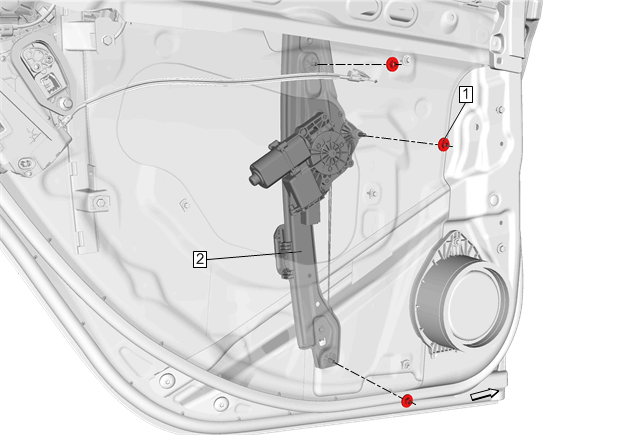

Rear Side Door Window Regulator Replacement

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Place the rear side door window in the full up position. Rear Side Door Trim Replacement Rear Side Door Water Deflector Tape the window to the upper door frame before releasing the window from the window retainer.
1	Rear Side Door Window Regulator Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Rear Side Door Window Regulator Procedure Disconnect the electrical connector. Transfer all parts as necessary. NOTE: Inspect the window for proper operation before installing the door trim.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Place the rear side door window in the full up position.
Rear Side Door Trim Replacement
Rear Side Door Water Deflector
Tape the window to the upper door frame before releasing the window from the window retainer.

Rear Side Door Window Regulator Nut [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)

Rear Side Door Window Regulator

Procedure

Disconnect the electrical connector.
Transfer all parts as necessary.

NOTE:

Inspect the window for proper operation before installing the door trim.
