Rear Side Door Window Replacement

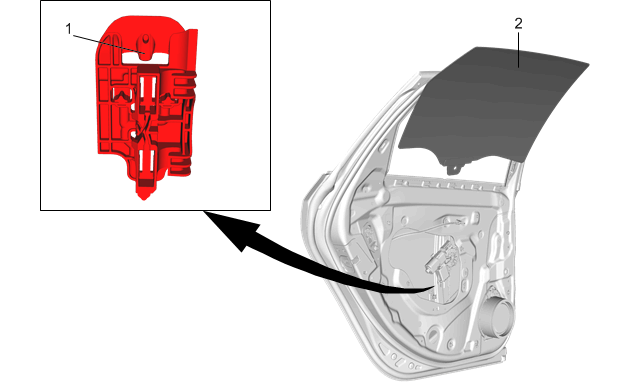

GM4250087
Callout Component Name
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

CAUTION:

Refer to Paint Damage Caution .

Preliminary Procedures

  1. Rear Side Door Trim Replacement
  2. Rear Side Door Window Belt Reveal Molding Replacement
  3. Rear Side Door Window Inner Sealing Strip Replacement
  4. Remove the water deflector.
  5. Rear Side Door Window Channel Retainer Replacement
1 Rear Side Door Window Regulator Retainer

Procedure

  1. Use masking tape to tape the window in the full up position to the door frame.
  2. Using the proper tool release the window from the regulator guide.
  3. Lower the window regulator full down.
  4. Remove the masking tape from the window.
  5. Tilt the window downward in the front, pull on the back of the window and pull it out from the door frame.
2 Rear Side Door Window
NOTE:

Inspect the window for proper operation before install the door trim panel.
