Removal Procedure
- Open the hood.
- Windshield Wiper Arm Replacement - Remove
- Air Inlet Grille Panel Replacement - Remove
- Inside Rearview Mirror Replacement - Remove
- Front View Camera Replacement - Remove
- Windshield Outside Moisture/Ambient Light and Humidity Sensor Replacement - Remove
- Cover to protect the following parts from broken glass:
- Upper Dash Pad
- The defroster outlets and A/C outlets
- The seats and carpeting
- Remove the lower windshield supports from the cowl panel, if equipped.
- WARNING:
When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.
Using the appropriate tool, carefully cut around the lace (1), start in the center working from side to side of the window to access the urethane adhesive bead, if equipped.
- NOTE:
Keep the cutting edge of the tool against the window.
This will allow the urethane adhesive to be separated from the windshield.
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.
- BO-24402-A Glass Sealant Remover (Cold Knife).
- BO-39032 Stationary Glass Removal Tool, or equivalent in order to remove the window.

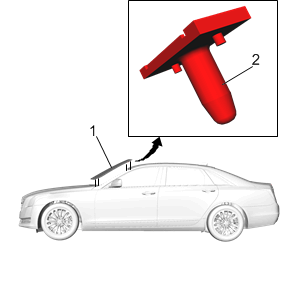

With the aid of an assistant, remove the windshield (1) and locating pin (2) from the vehicle.
Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
