Accessory AC and DC Power Control Module Replacement

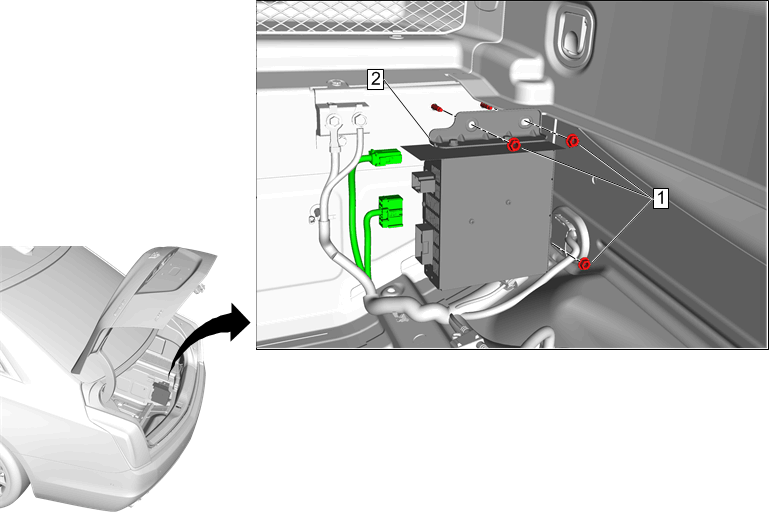

GM4250137Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
  2. Rear Compartment Floor Stowage Compartment Cover Replacement (Without HP9)
1 Accessory AC and DC Power Control Module Nut [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Accessory AC and DC Power Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  3. Control Module References for programming and set-up information, if required.
