Charge Port Door Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the charge port door. High Voltage Disabling

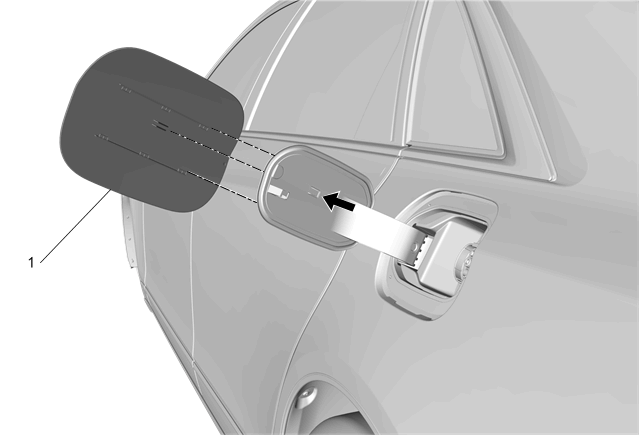

1	Charge Port Door Procedure Using a flat-bladed driver, lift slightly upward on the tab at the center of the hinge in order to release the door from the hinge assembly. Slide the door outward, away from the hinge and remove. High Voltage Enabling

Callout

Component Name

Preliminary Procedures

Charge Port Door

Procedure

Using a flat-bladed driver, lift slightly upward on the tab at the center of the hinge in order to release the door from the hinge assembly.
Slide the door outward, away from the hinge and remove.
High Voltage Enabling
