Automatic Transmission Case Components

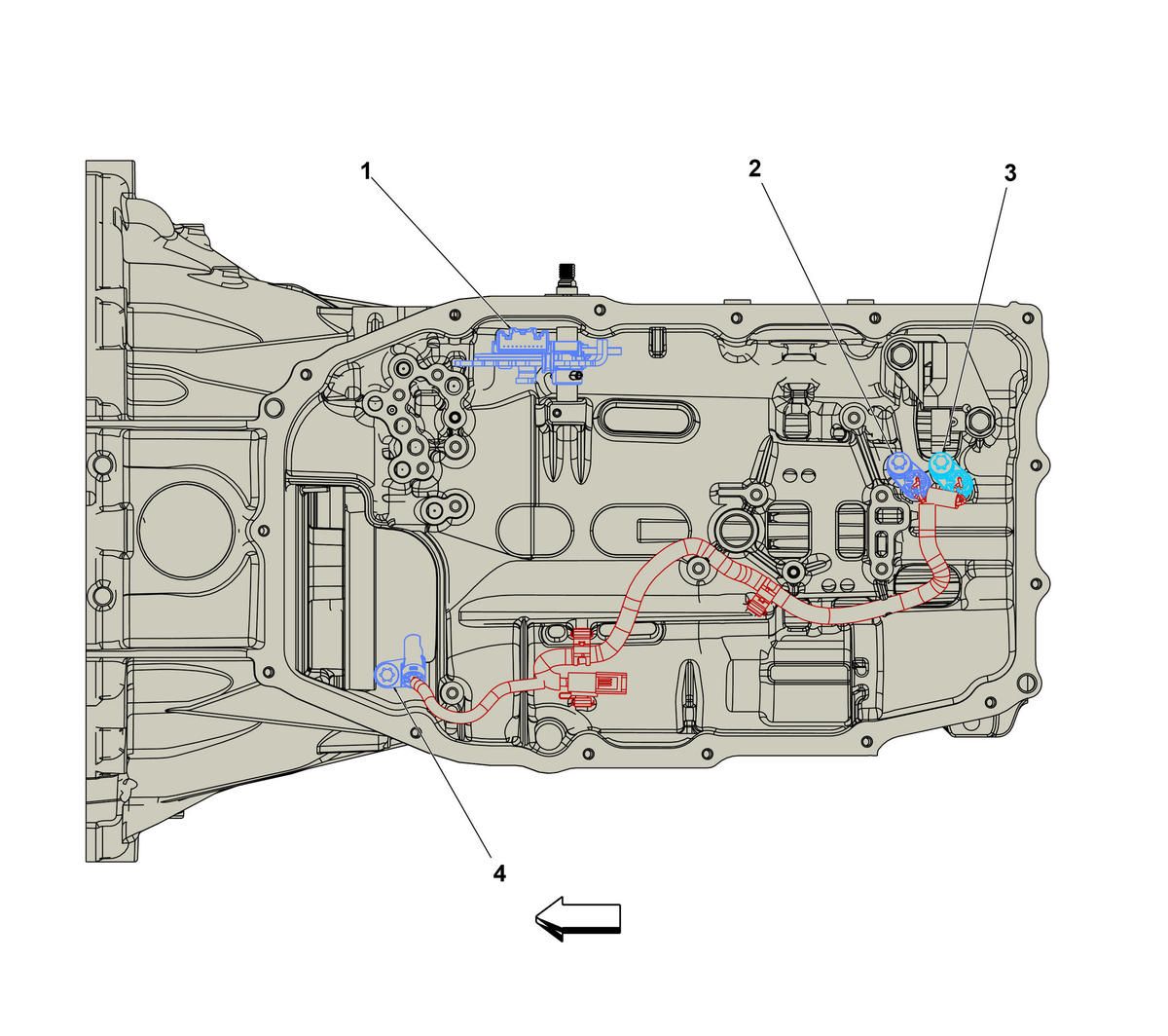

GM4092029Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Case Components

Items
1. B15 Transmission Internal Mode Switch
2. B14D Transmission Intermediate Shaft Speed Sensor
3. B14A Transmission Output Shaft Speed Sensor
4. B14C Transmission Input Shaft Speed Sensor
