Automatic Transmission Valve Body Components

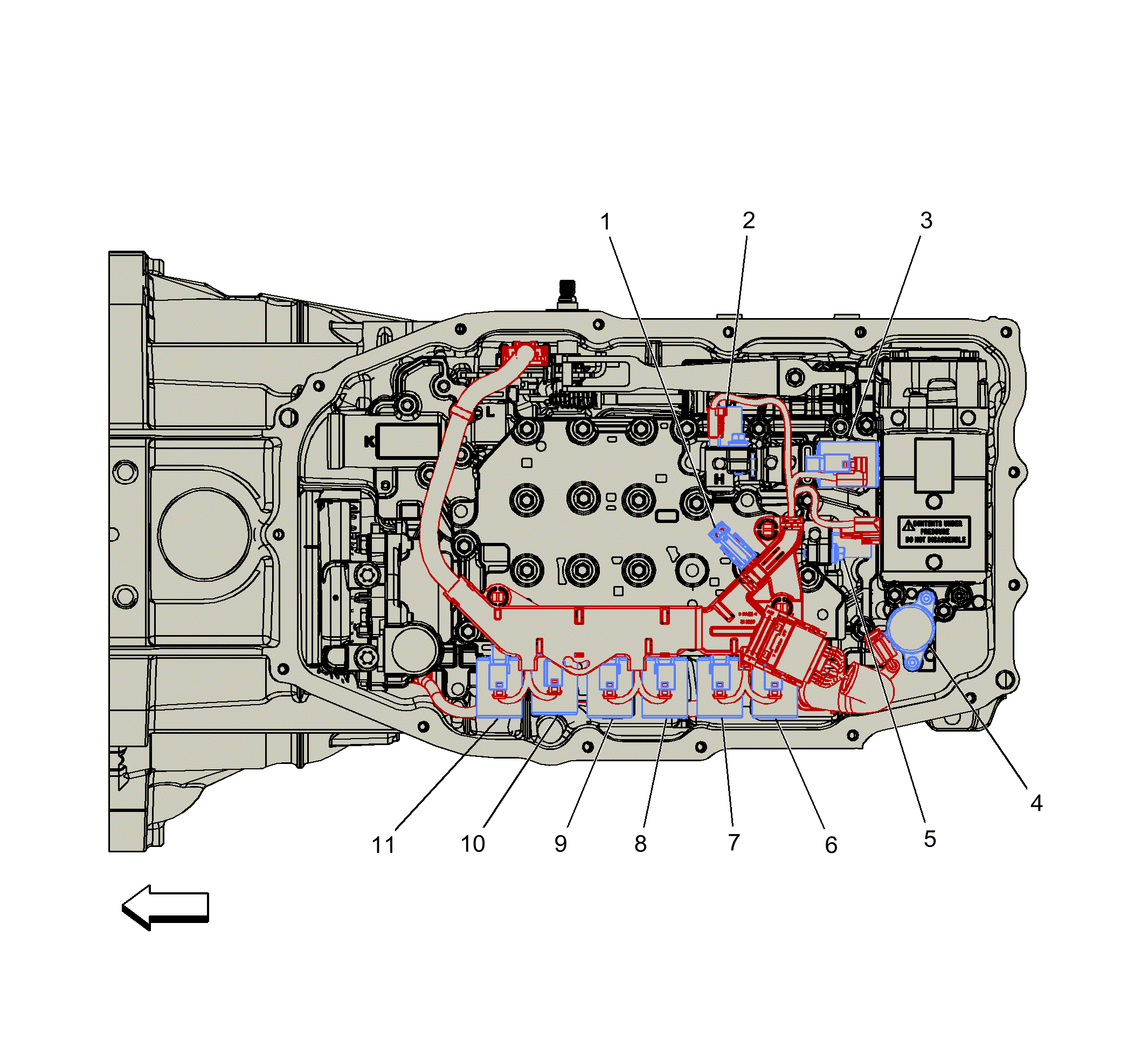

GM4092032Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Valve Body Components

Items
1. B13 Transmission Fluid Temperature Sensor
2. Q77H Transmission Control Solenoid Valve 8
3. Q77F Transmission Control Solenoid Valve 6
4. B280 Automatic Transmission Accumulator Solenoid Valve
5. Q77J Transmission Control Solenoid Valve 9
6. Q77B Transmission Control Solenoid Valve 2
7. Q77A Transmission Control Solenoid Valve 1
8. Q77E Transmission Control Solenoid Valve 5
9. Q77C Transmission Control Solenoid Valve 3
10. Q77D Transmission Control Solenoid Valve 4
11. Q77G Transmission Control Solenoid Valve 7
