Engine Coolant Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

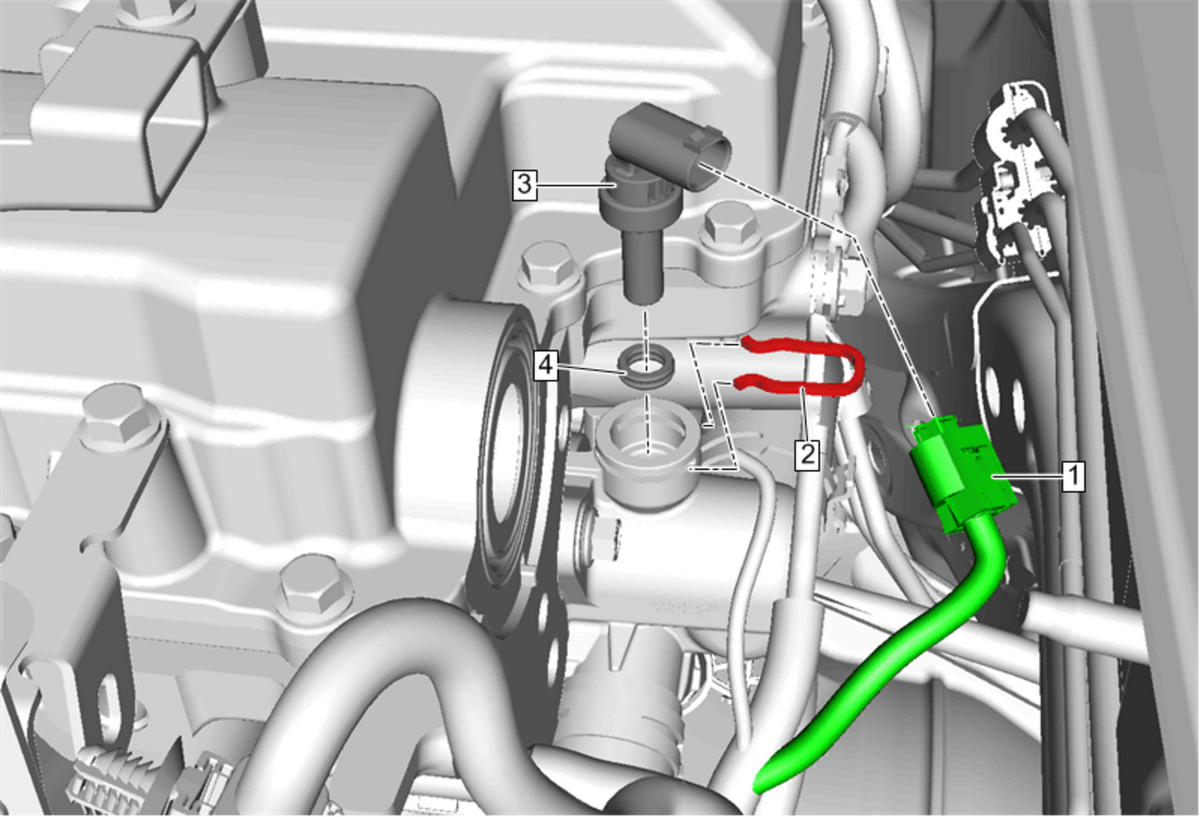

Callout	Component Name
Preliminary Procedures Cooling System Draining and Filling (Static without HP9)Cooling System Draining and Filling (GE 47716 without HP9)Cooling System Draining and Filling (Static LTG with HP9)Cooling System Draining and Filling (GE 47716 LTG with HP9) Vacuum Pump Replacement
1	Electrical Connector
2	Engine Coolant Temperature Sensor Retainer
3	Engine Coolant Temperature Sensor
4	Engine Coolant Temperature Sensor Seal Procedure The seal is reusable, inspect the seal and replace if damaged.
