Removal Procedure
- Drain the cooling system. Cooling System Draining and Filling (Static without HP9)Cooling System Draining and Filling (GE 47716 without HP9)Cooling System Draining and Filling (Static LTG with HP9)Cooling System Draining and Filling (GE 47716 LTG with HP9)
- Fuel Pump Insulator - Remove - Fuel Pump Insulator Replacement
- Intake Manifold - Remove - Intake Manifold Replacement (Except Hybrid)Intake Manifold Replacement (Hybrid)
Hose Clamp (1)@Radiator Inlet Pipe - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Inlet Hose (2) - Reposition

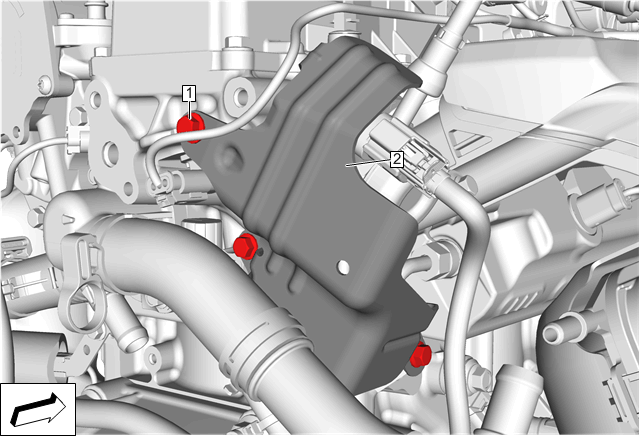

Fuel Pump Cover Fastener (1) - Remove [3x]
- Fuel Pump Cover (2) - Remove
