Removal Procedure

    WARNING:

    Refer to Diesel/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

  1. Fuel Tank - Remove - Fuel Tank Replacement (HP9)

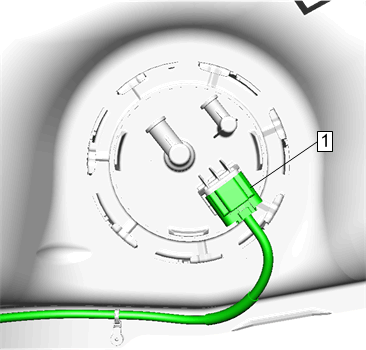

  2. GM4481229Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

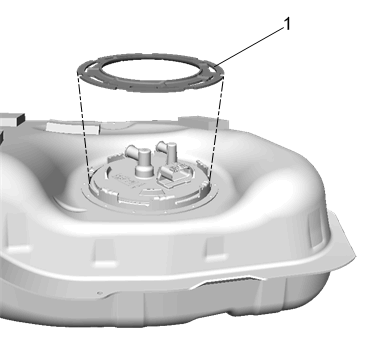

  3. GM4481230Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Ring (1) - Remove - CH 45722  wrench

  4. GM4481257Courtesy of GENERAL MOTORS COMPANY

    Transfer Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

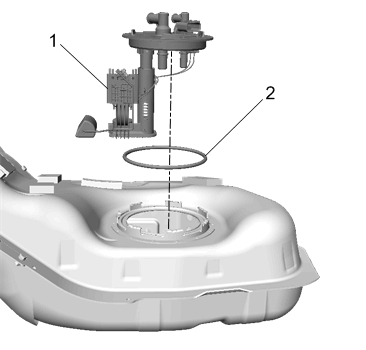

  5. GM4481253Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender (1) - Remove

  6. O-Ring (2) - Remove and DISCARD
