Fuel Tank Pressure Sensor Replacement (HP9)

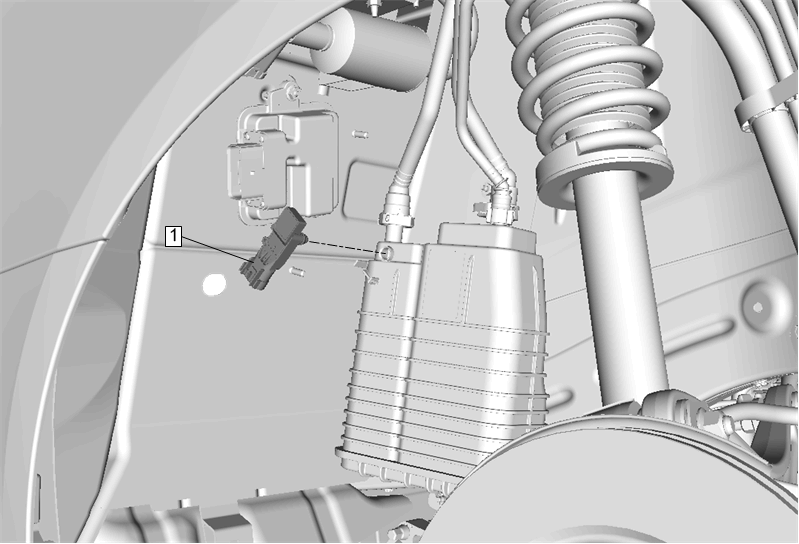

GM4477590Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Rear Wheelhouse Liner Replacement
1 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
