Remote Control Door Lock Receiver Antenna Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .

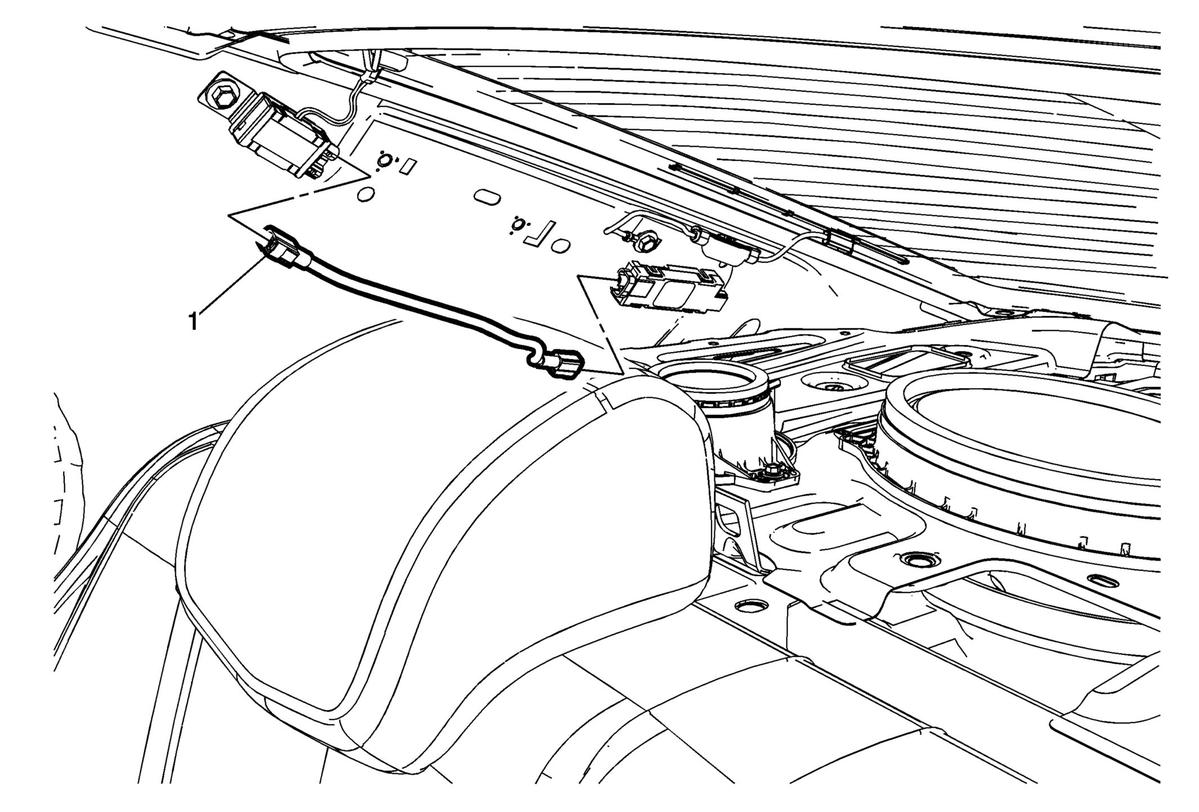

1	Remote Control Door Lock Receiver Antenna Procedure  Disconnect the antenna from the radio antenna amplifier and the remote control door lock receiver.
