Garage Door Opener Transmitter Replacement

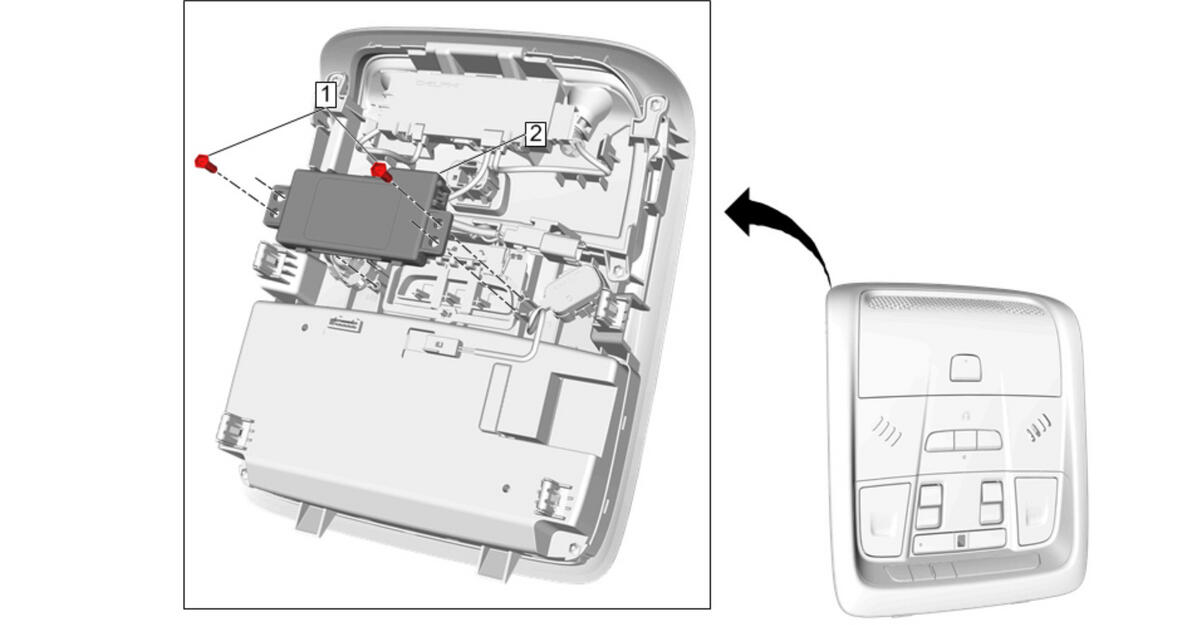

GM4279088Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Roof Console Replacement
1 Roof Console Bolt[2x]
CAUTION:

Fastener Caution


Tighten
1.5 N.m (13 lb in)
2 Garage Door Opener Transmitter
