Front Seat Belt Guide Adjuster Replacement

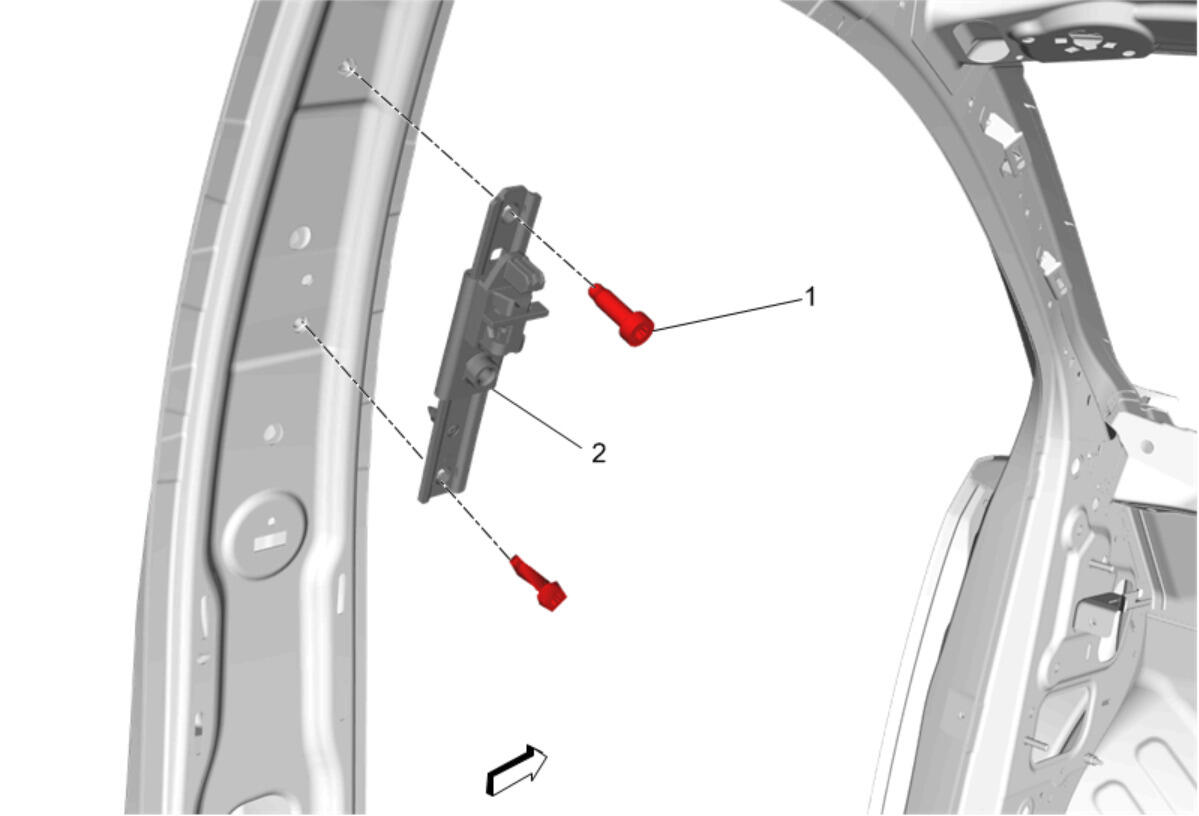

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat belt retractor D ring bolt. Front Seat Belt Retractor Replacement |
|
| 1 | Front Seat Belt Guide Adjuster Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Front Seat Belt Guide Adjuster |
