Floor Console Components - External

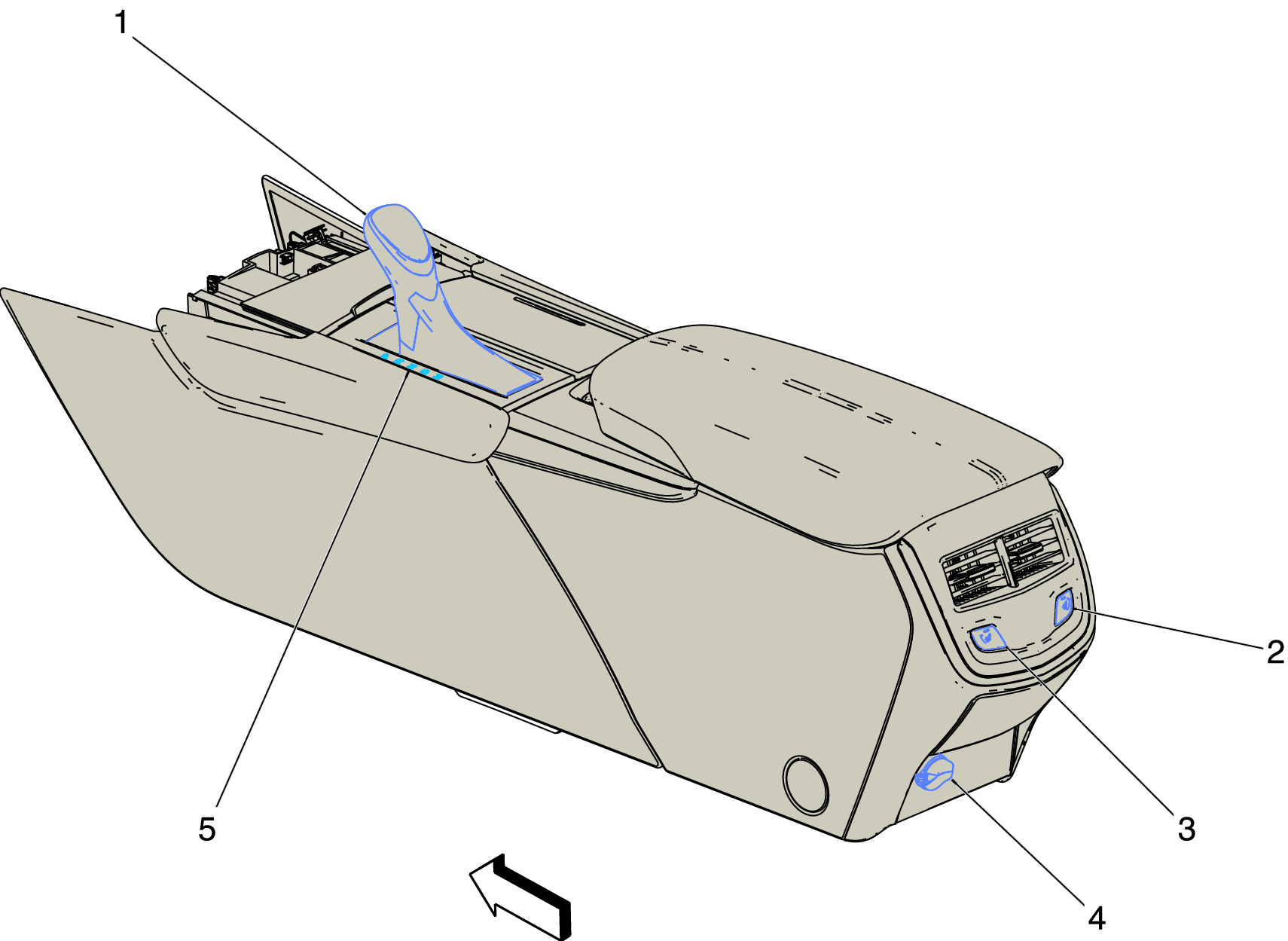

GM2754053Courtesy of GENERAL MOTORS COMPANY
Floor Console Components - External

Items
1. S3 Transmission Shift Lever S3 Transmission Shift Lever
2. S32RR Seat Heating Switch - Right Rear (KA6) S32RR Seat Heating Switch - Right Rear
3. S32LR Seat Heating Switch - Left Rear (KA6) S32LR Seat Heating Switch - Left Rear
4. X80D Accessory Power Receptacle - Center Console Compartment X80D Accessory Power Receptacle - Center Console Compartment
5. P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator
