Ignition Lock Key Transmitter Antenna Replacement - Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Rear Trim Panel Replacement (With Compartment) , or Front Floor Console Rear Trim Panel Replacement (Without Compartment)

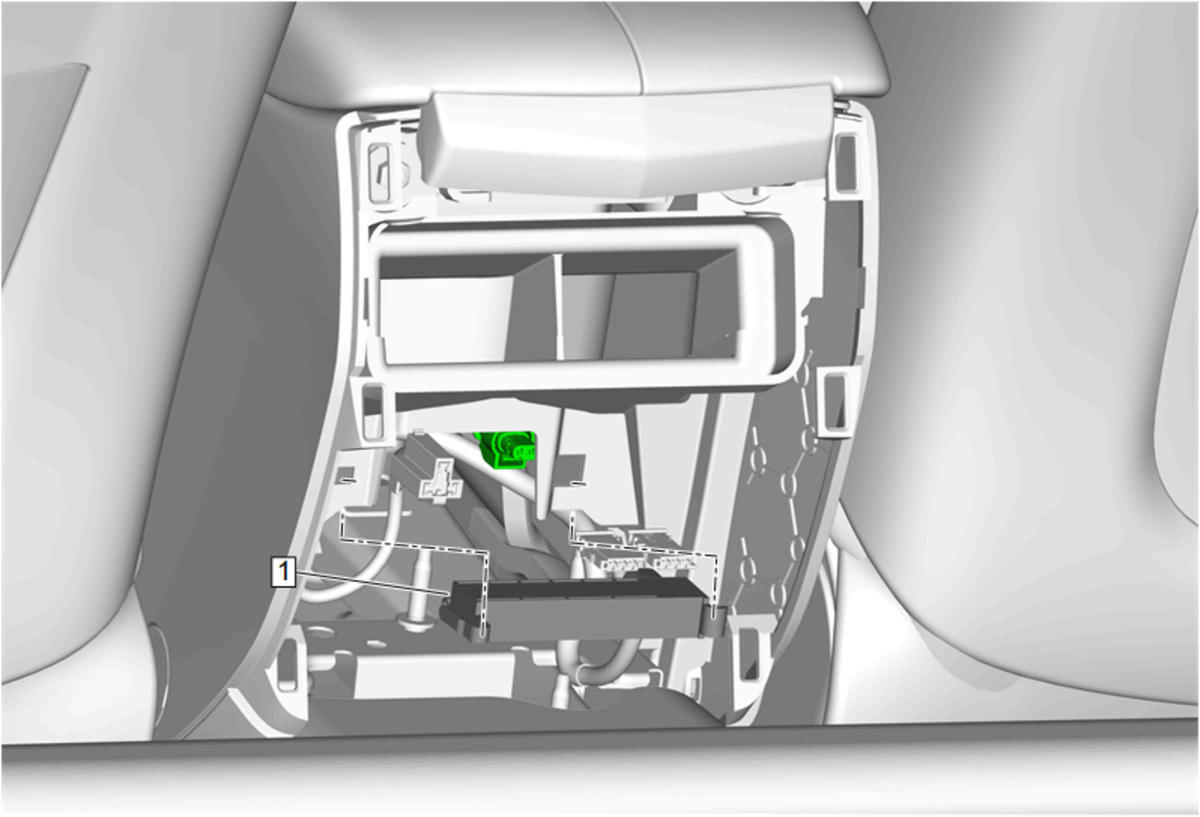

1	Ignition Lock Key Transmitter Antenna Procedure Release the retaining tab. Disconnect the electrical connector.

Callout

Component Name

Ignition Lock Key Transmitter Antenna

Procedure
