Keyless Entry Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel - right. Refer to Rear Compartment Side Trim Replacement - Right Side .

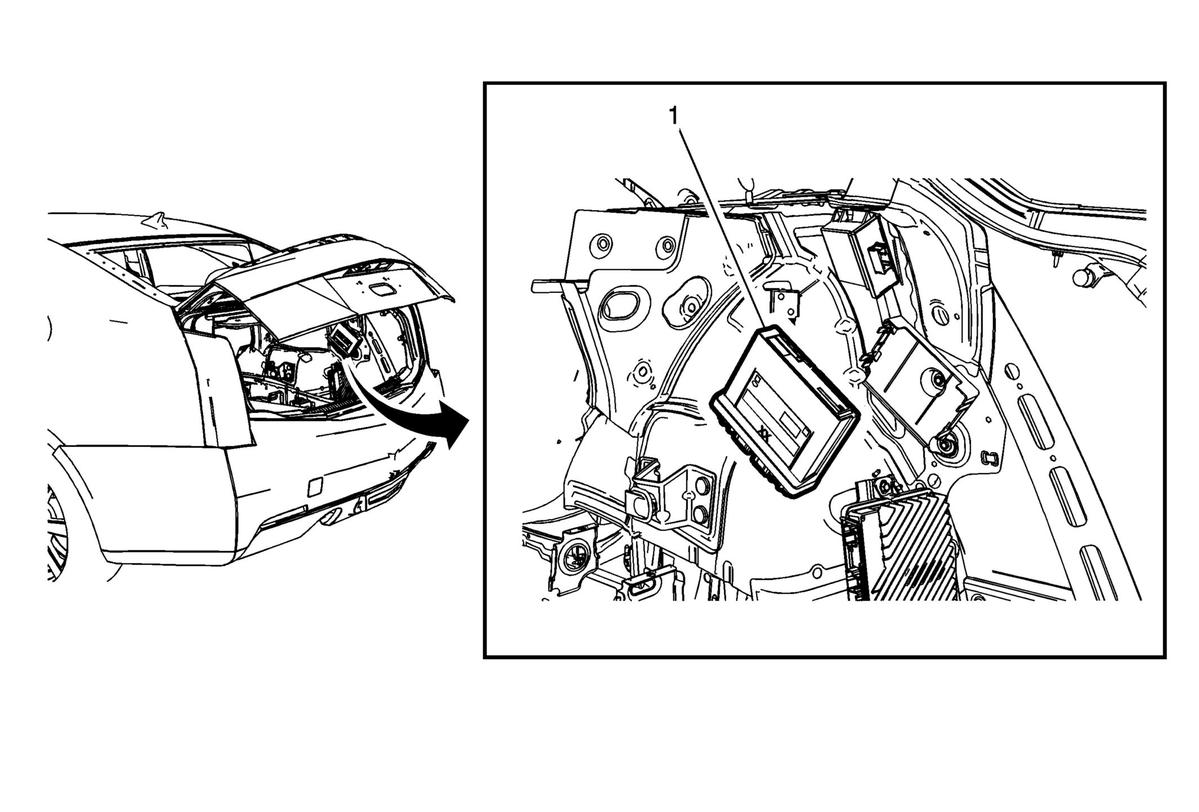

1	Keyless Entry Control Module Procedure Disconnect the electrical connectors. Release module from retaining tabs on bracket. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear compartment side trim panel - right. Refer to Rear Compartment Side Trim Replacement - Right Side .

Keyless Entry Control Module

Procedure
