Driver or Passenger Seat Adjuster Memory Module Replacement

Courtesy of GENERAL MOTORS COMPANY

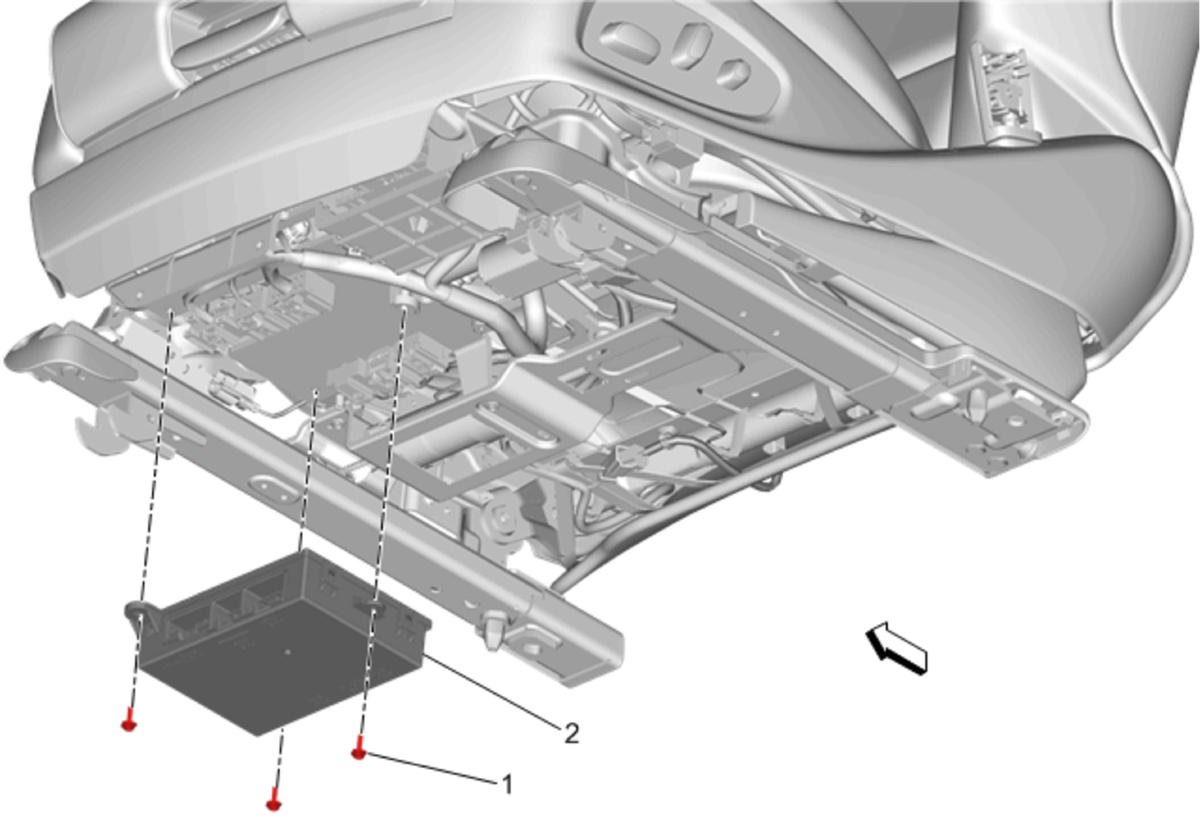

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Front Seat Removal and Installation . NOTE: Any spacers located between the module and the mounting bracket should be reinstalled.
1	Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Driver or Passenger Seat Adjuster Memory Module Procedure Disconnect the electrical connectors. Remove the module from the adjuster memory and wiring harness bracket. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat. Refer to Front Seat Removal and Installation .

NOTE:

Any spacers located between the module and the mounting bracket should be reinstalled.

Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 3)

CAUTION:

Driver or Passenger Seat Adjuster Memory Module

Procedure
