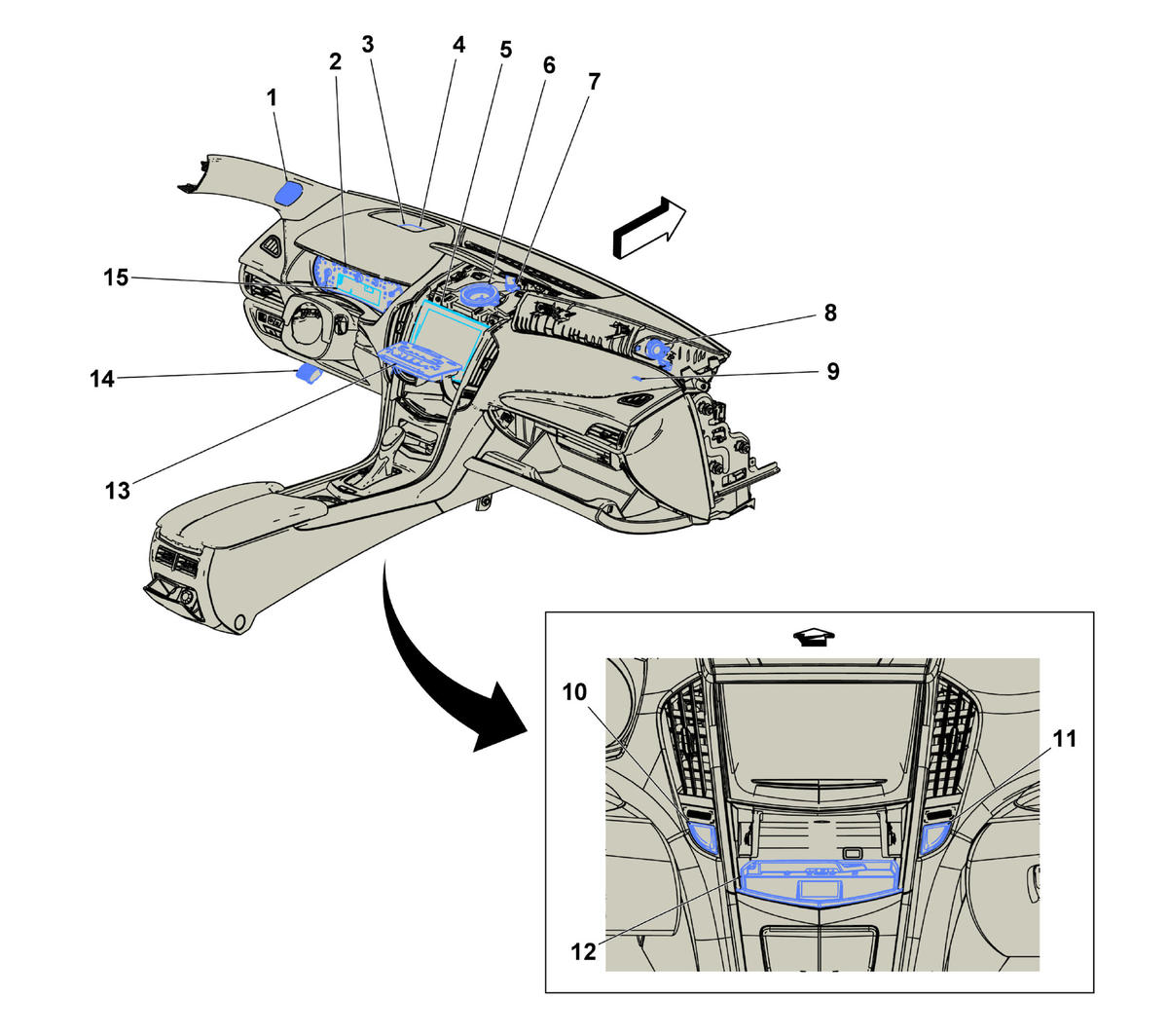

Instrument Panel Components - Center

GM4939277Courtesy of GENERAL MOTORS COMPANY
Items
1. P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter
2. P16 Instrument Cluster P16 Instrument Cluster X1
3. P29 Head-Up Display (UV6) P29 Head-Up Display X1P29 Head-Up Display X2
4. P43 Collision Alert Indicators (UEU-UV6) P43 Collision Alert Indicators
5. P17 Info Display Module P17 Info Display Module X1P17 Info Display Module X2P17 Info Display Module X3
6. P19B Speaker - Center Instrument Panel (1SV/UQS) P19B Speaker - Center Instrument Panel
7. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
8. P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter
9. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2
10. S38 Ignition Mode Switch S38 Ignition Mode Switch
11. S26 Hazard Warning Switch S26 Hazard Warning Switch
12. T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module (K4C+A1SL/A1BL)T22 Mobile Device Wireless Charger Module (K4C)
13. A20 Radio/HVAC Controls
14. B80 Park Brake Switch B80 Park Brake Switch
15. P9 Driver Information Center Display
