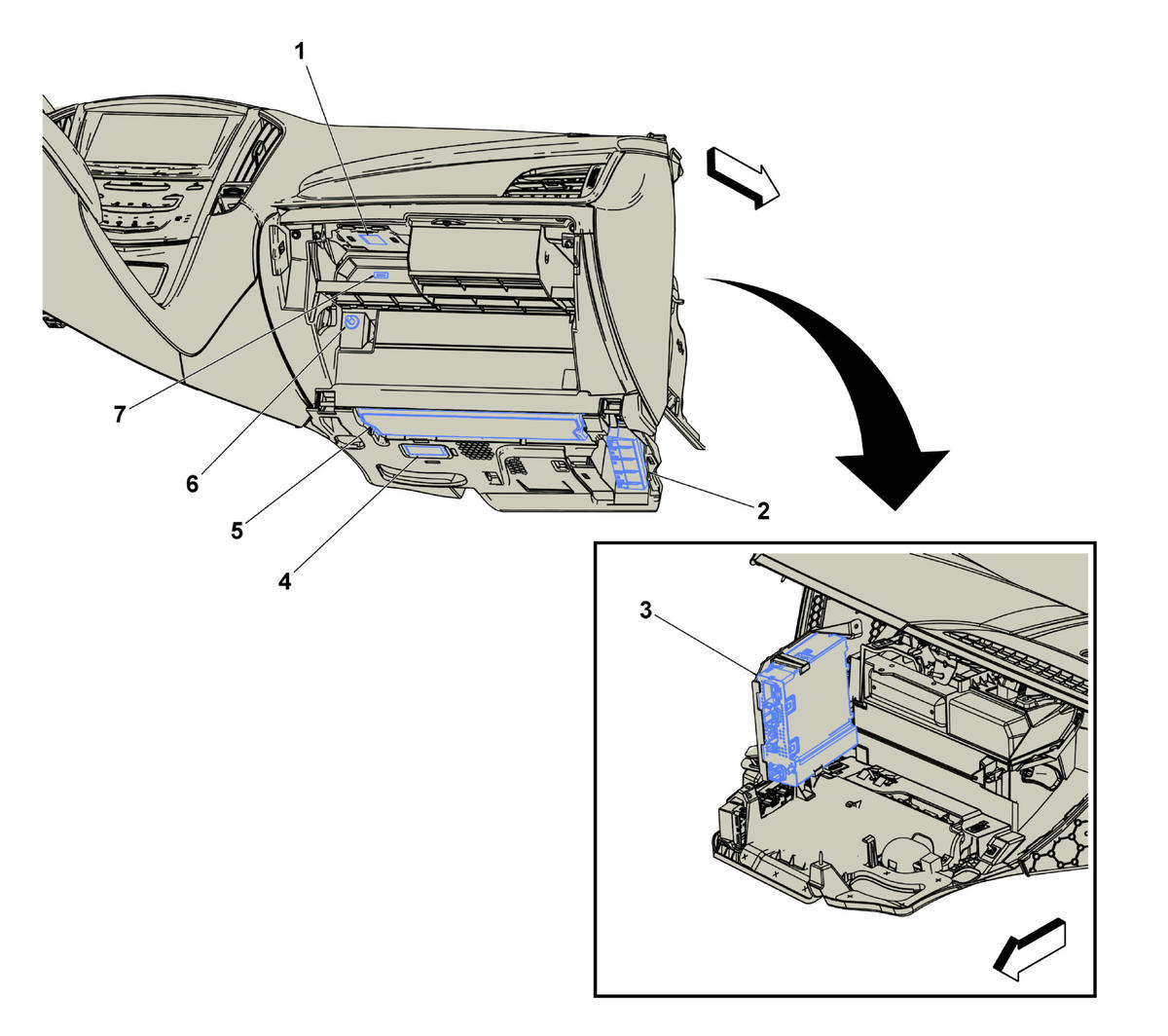

Instrument Panel Components - Right Side

GM4939507Courtesy of GENERAL MOTORS COMPANY
Items
1. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
2. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3
3. A11 Radio A11 Radio X1A11 Radio X2A11 Radio X3A11 Radio X4A11 Radio X6A11 Radio X7A11 Radio X8A11 Radio X9
4. E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right
5. F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger
6. S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch
7. X20 Memory Card Receptacle (UQT) X20 Memory Card Receptacle X1X20 Memory Card Receptacle X2
