Suspension Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

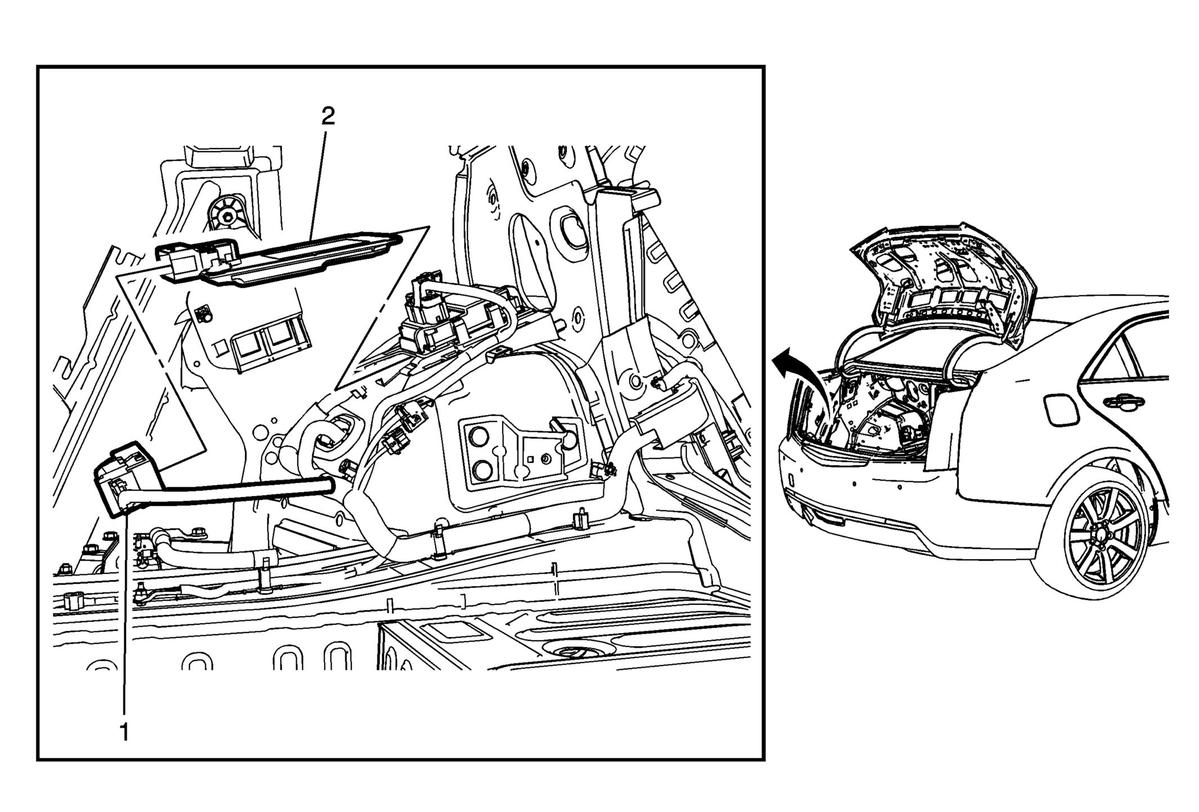

Callout	Component Name
Preliminary Procedure Remove the left rear compartment side trim panel. Rear Compartment Side Trim Replacement - Left Side
1	Electronic Suspension Control Module Electrical Connector Procedure Release the lock tab on the electrical connector and remove.
2	Electronic Suspension Control Module Procedure Release the lock tabs and remove the control module from the mounting bracket. Reprogram the control module. Control Module References

Callout

Component Name

Preliminary Procedure
Remove the left rear compartment side trim panel. Rear Compartment Side Trim Replacement - Left Side

Electronic Suspension Control Module Electrical Connector
Procedure
Release the lock tab on the electrical connector and remove.

Electronic Suspension Control Module

Procedure
