Theft Deterrent Module Replacement

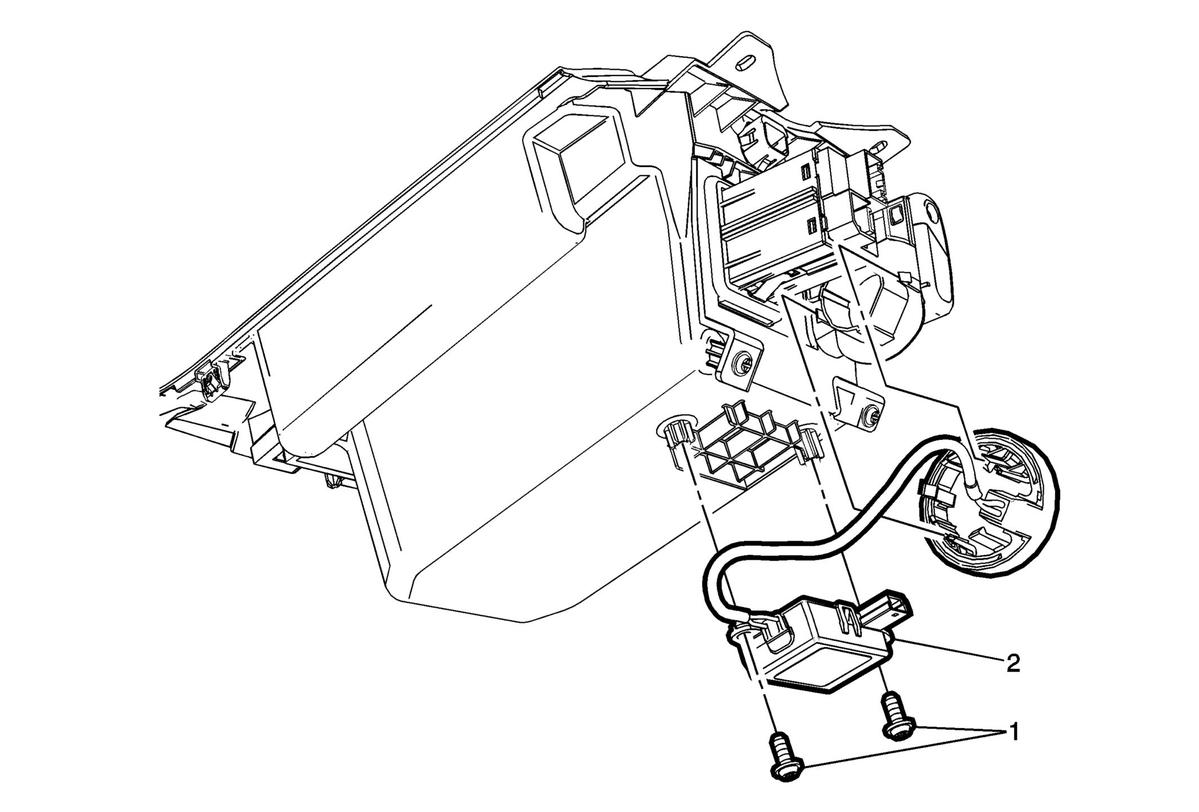

GM2814436Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Floor Console Compartment Replacement
  2. Audio Player and USB and Auxiliary In and Memory Card Receptacle Replacement
1 Theft Deterrent Module Bolt [2x]
CAUTION:

Refer to Fastener Caution .
2 Theft Deterrent Module

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs and remove the theft deterrent module from the front floor console compartment.
  3. Program the theft deterrent module. Control Module References
