Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

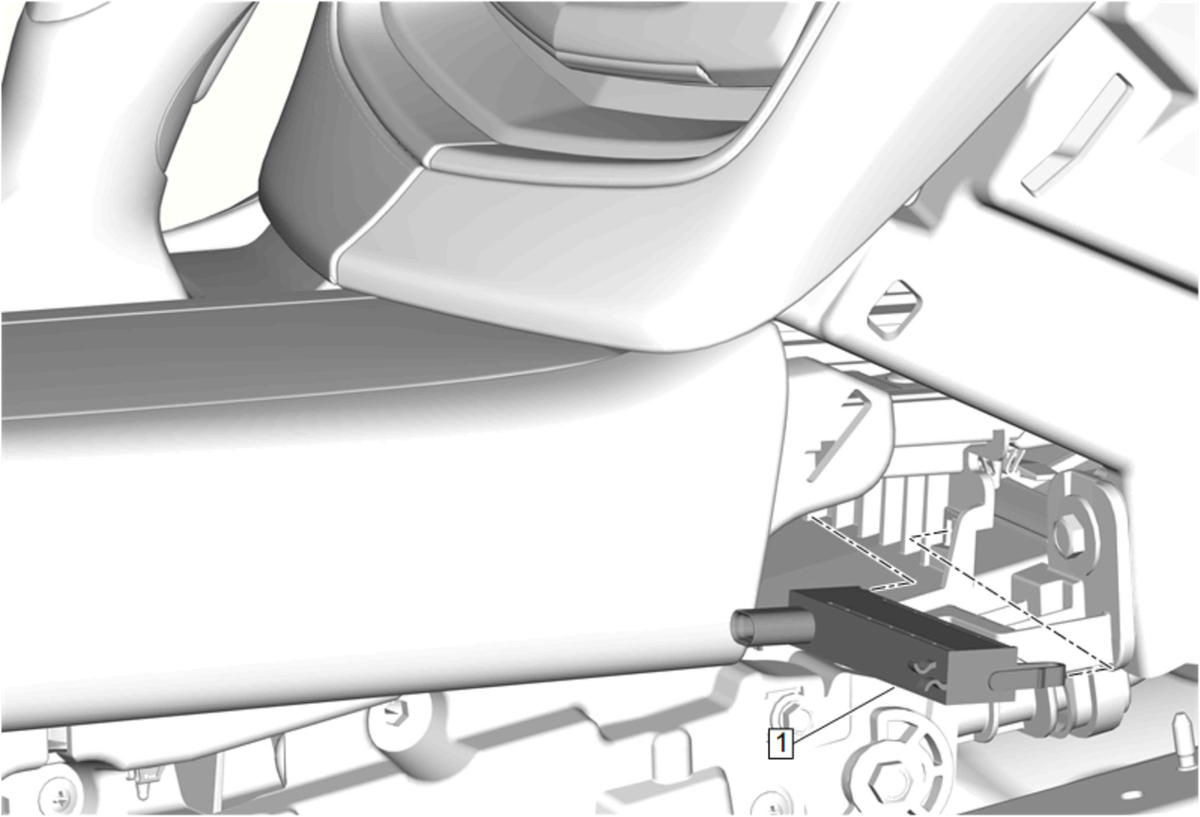

GM5021572Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Lower Center Trim Panel Replacement (Right Side) , or Instrument Panel Lower Center Trim Panel Replacement (Left Side)
1 Ignition Lock Key Transmitter Antenna

Procedure

  1. Reposition the front floor panel carpet as necessary.
  2. Release the retaining tab.
  3. Disconnect the electrical connector.
