Keyless Entry Control Module Replacement

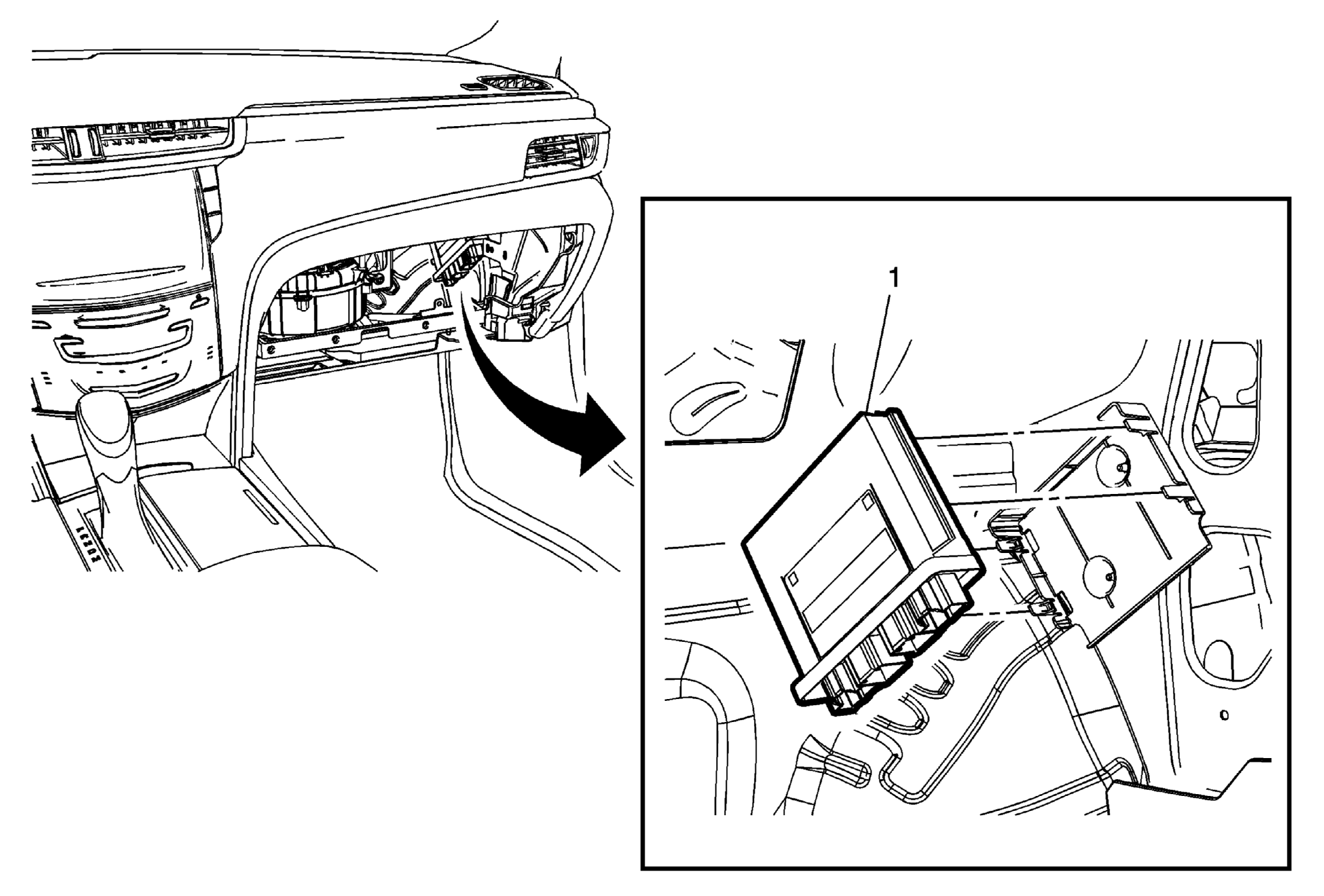

GM2756760Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement
  2. Remove the instrument panel insulator panel - right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
1 Keyless Entry Control Module

Procedure

  1. Disconnect the electrical connections.
  2. Slide module downward to release from bracket.
  3. Refer to Control Module References for programming and setup information.
