Steering Column Tilt Wheel and Telescope Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

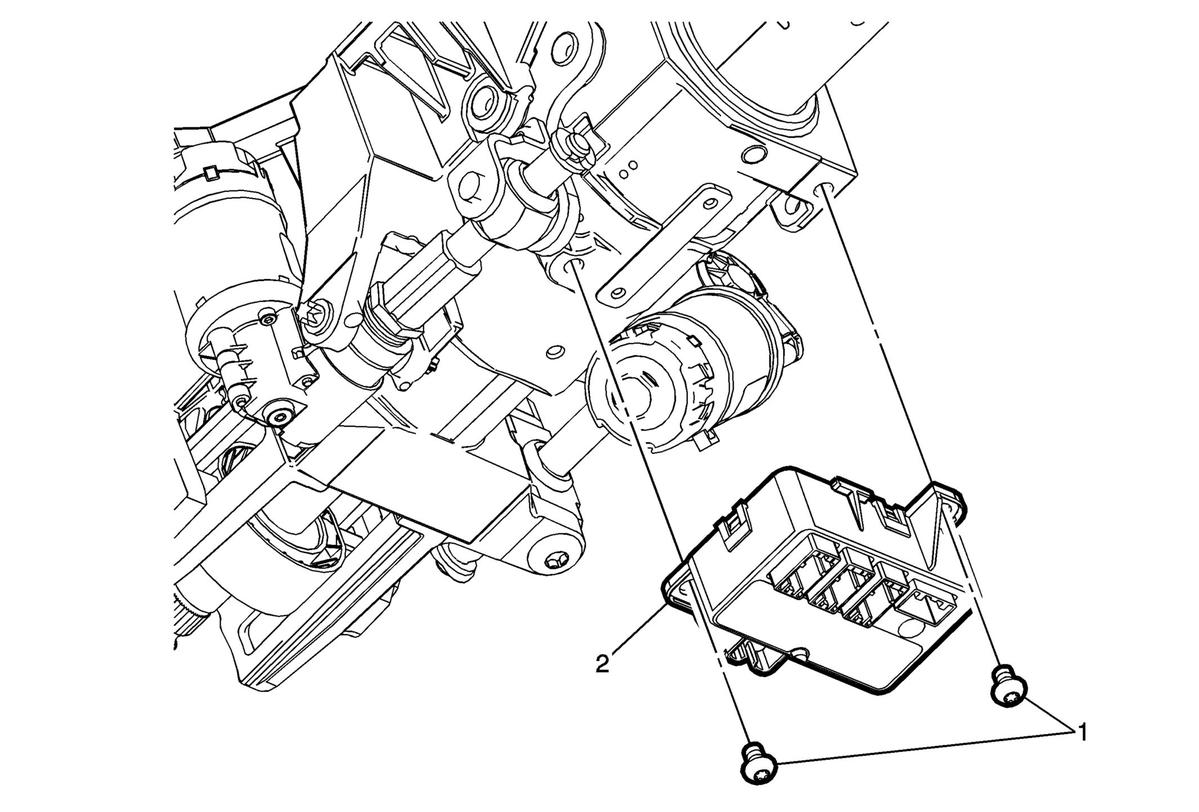

Callout	Component Name
Preliminary Procedures Steering Column Upper Trim Cover Replacement Steering Column Lower Trim Cover Replacement Instrument Panel Knee Bolster Replacement
1	Steering Column Tilt Wheel and Telescope Control Module Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Steering Column Tilt Wheel and Telescope Control Module Procedure Disconnect the electrical connectors. After installation and before the steering column upper and lower trim covers are installed, relearn the soft and hard stops. Steering Column Tilt Wheel and Telescope Control Module Learn NOTE: In order to relearn the steering column soft and hard stops, the steering column MUST be mounted and fastened and the steering column upper and lower trim covers CANNOT be installed.

Callout

Component Name

Preliminary Procedures

Steering Column Upper Trim Cover Replacement
Steering Column Lower Trim Cover Replacement
Instrument Panel Knee Bolster Replacement

Steering Column Tilt Wheel and Telescope Control Module Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
3 N.m (27 lb in)

Steering Column Tilt Wheel and Telescope Control Module

Procedure

Disconnect the electrical connectors.
After installation and before the steering column upper and lower trim covers are installed, relearn the soft and hard stops. Steering Column Tilt Wheel and Telescope Control Module Learn

NOTE:

In order to relearn the steering column soft and hard stops, the steering column MUST be mounted and fastened and the steering column upper and lower trim covers CANNOT be installed.
