Column Lock Module Replacement

Courtesy of GENERAL MOTORS COMPANY

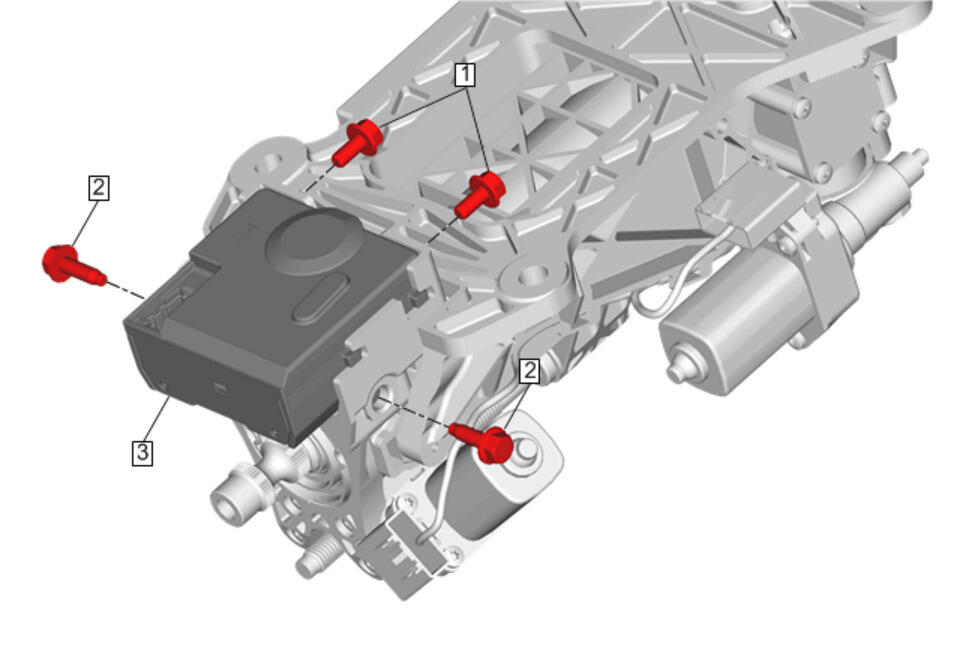

Callout	Component Name
Preliminary Procedure With the vehicle in accessory mode, remove fuse to unlock the steering column lock control module - Column Lock Wiring Schematics Steering Column Replacement (N37) , or Steering Column Replacement (N38)
1	Steering Column Lock Control Module Bolt- Rear [2x] CAUTION: Refer to Fastener Caution . NOTE: The rear steering column lock control module bolts are a different length than the side steering column lock control module bolts. The bolts MUST be installed in the appropriate positions. Tighten 9.5 N.m (84 lb in)
2	Steering Column Lock Control Module Bolt - Side [2x] NOTE: The rear steering column lock control module bolts are a different length than the side steering column lock control module bolts. The bolts MUST be installed in the appropriate positions. Tighten 9.5 N.m (84 lb in)
3	Steering Column Lock Control Module Procedure Program the steering column lock control module. Control Module References
