Night Vision Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Knee Bolster Replacement

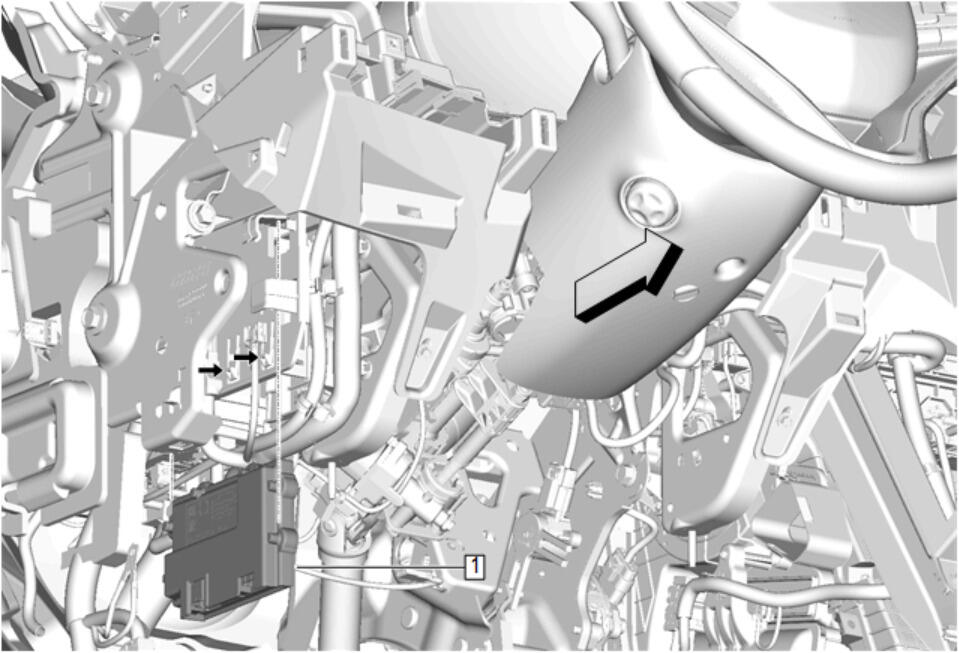

1	Night Vision Module Procedure Disconnect the electrical Connector s. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Night Vision Module

Procedure

Disconnect the electrical Connector s.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
