Trailer Lamp Control Module Replacement

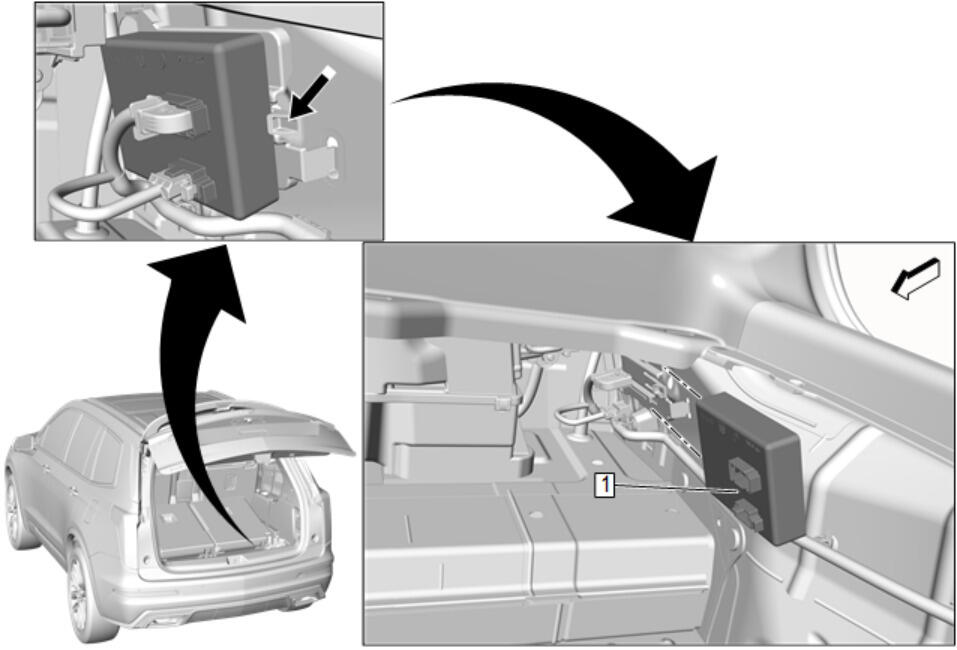

GM5204498Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Floor Stowage Compartment Divider Replacement
1 Trailer Lamp Control Module

Procedure

  1. Release the retaining tab.
  2. Disconnect the electrical connector.
  3. After installation, program the trailer lamp control module. Control Module References
