Fastener Specifications

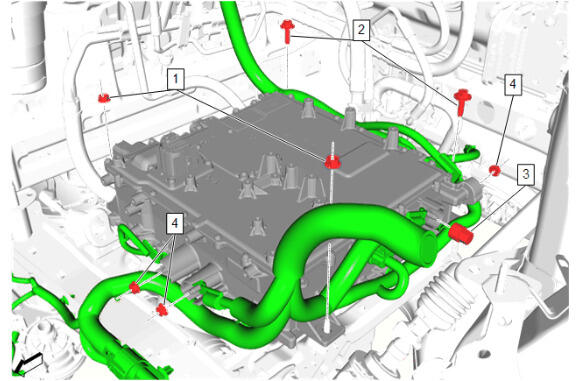

GM6148573Courtesy of GENERAL MOTORS COMPANY
Battery Charger

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Distribution Control Module Nut [2x] - - 22 N.m (16 lb ft) Battery Charger Replacement (RWL / K2O) , or Battery Charger Replacement (RWL / K28)
2 Drive Motor Power Distribution Control Module Bolt [2x] - - 22 N.m (16 lb ft) Battery Charger Replacement (RWL / K2O) , or Battery Charger Replacement (RWL / K28)
3 Engine Wiring Harness Battery Lead Nut - - 22 N.m (16 lb ft) Battery Charger Replacement (RWL / K2O) , or Battery Charger Replacement (RWL / K28)
4 Engine Wiring Harness Ground Nut [3x] - - 22 N.m (16 lb ft) Battery Charger Replacement (RWL / K2O) , or Battery Charger Replacement (RWL / K28)

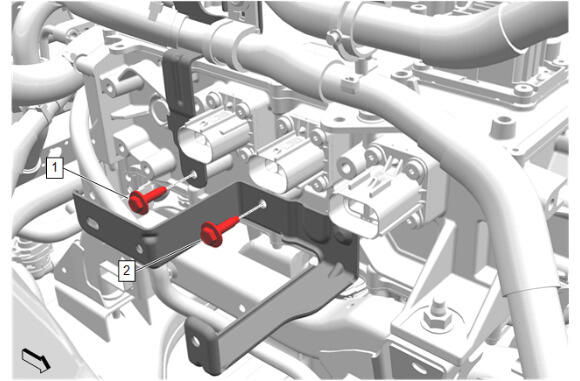

GM6152009Courtesy of GENERAL MOTORS COMPANY
Battery Charger - Passenger Side Bracket Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Inlet Hose Bracket Bolt - - 9 N.m (80 lb in) Battery Charger Replacement (RWL / K2O) , or Battery Charger Replacement (RWL / K28)
2 Engine Wiring Harness Ground Bolt - - 9 N.m (80 lb in) Battery Charger Replacement (RWL / K2O) , or Battery Charger Replacement (RWL / K28)

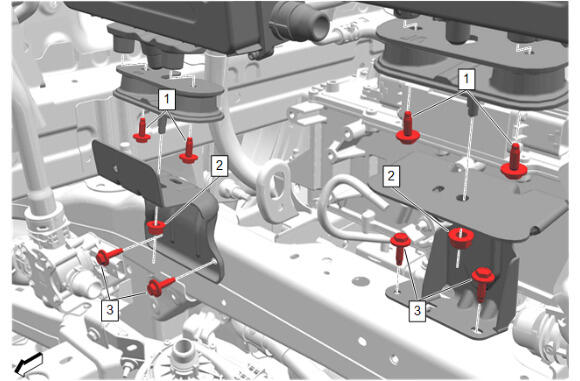

GM6084863Courtesy of GENERAL MOTORS COMPANY
Battery Charger Control Module 2 Nuts and Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Bolt [4x] - - 9 N.m (80 lb in) Battery Charger Replacement - Battery Charger Control Module 2
2 Drive Motor Battery Charger Bracket Nut [2x] - - 22 N.m (16 lb ft) Battery Charger Replacement - Battery Charger Control Module 2
3 Drive Motor Battery Charger Bracket Bolt [4x] - - 9 N.m (80 lb in) Battery Charger Replacement - Battery Charger Control Module 2

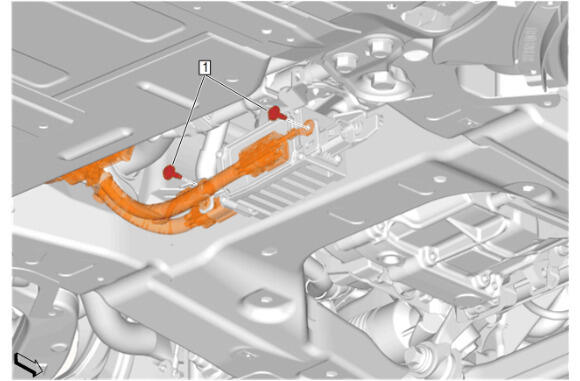

GM6736344Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupler Bolts - Battery Charger Coupler Fuse Block (K2W)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Bolt [2x] - - 9 N.m (80 lb in) Battery Charger Coupler Replacement (K2W)

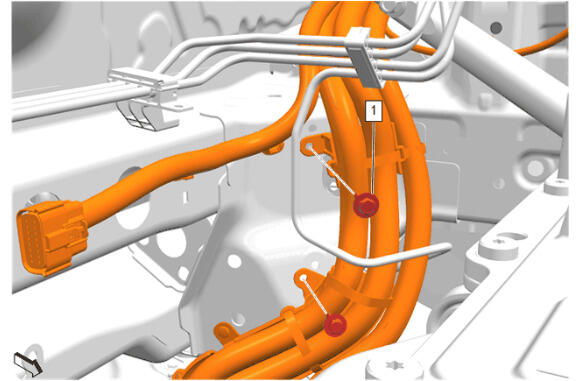

GM6084865Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupler Bolts - Front Compartment (K2O/K2W)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Bolt [2x] - - 9 N.m (80 lb in) Battery Charger Coupler Replacement (- K2W) , or Battery Charger Coupler Replacement (K2W)

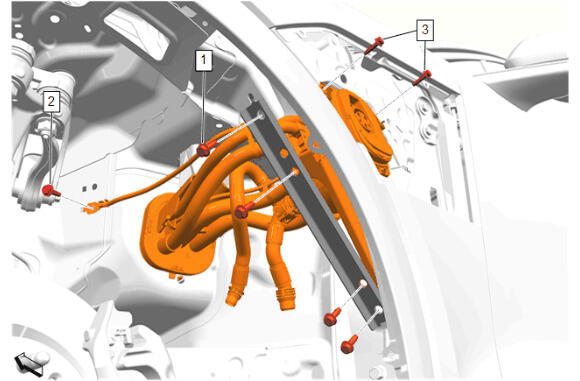

GM6084866Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupler Bolts - Wheelhouse (Except K2W)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Body Hinge Pillar Brace Bolt [4x] - - 22 N.m (16 lb ft) Battery Charger Coupler Replacement (- K2W)
2 Drive Motor Battery Charger Receptacle Bolt - - 22 N.m (16 lb ft) Battery Charger Coupler Replacement (- K2W)
3 Drive Motor Battery Charger Receptacle Bolt [2x] - - 9 N.m (80 lb in) Battery Charger Coupler Replacement (- K2W)

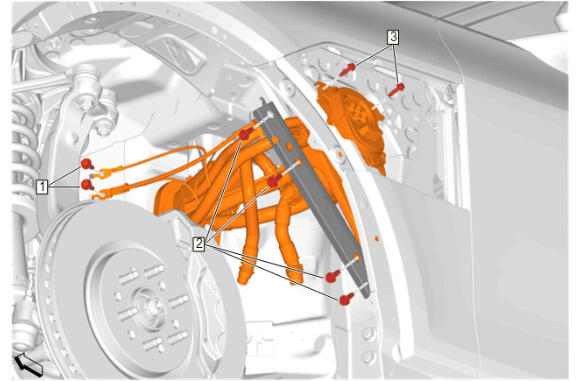

GM6737088Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupler Bolts - Wheelhouse (K2W)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Bolt [2x] - - 22 N.m (16 lb ft) Battery Charger Coupler Replacement (K2W)
2 Body Hinge Pillar Brace Bolt [4x] - - 22 N.m (16 lb ft) Battery Charger Coupler Replacement (K2W)
3 Drive Motor Battery Charger Receptacle Bolt [2x] - - 9 N.m (80 lb in) Battery Charger Coupler Replacement (K2W)

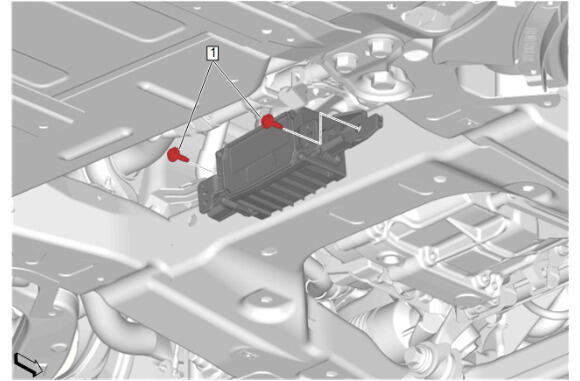

GM6736345Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupler Fuse Block Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Generator Bolt [2x] - - 9 N.m (80 lb in) Battery Charger Coupler Fuse Block Replacement

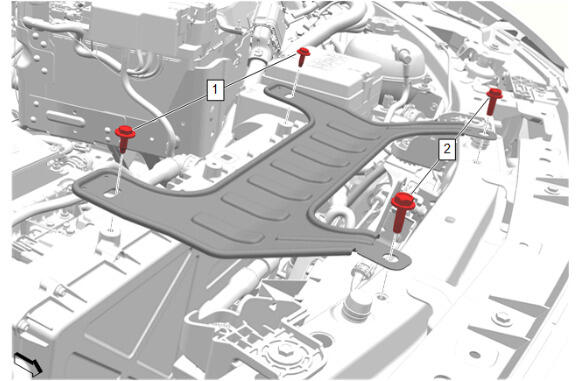

GM5946299Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Charger Bracket Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Bolt [2x] - - 9 N.m (80 lb in) Drive Motor Battery Charger Bracket Replacement
2 Drive Motor Battery Charger Ground Bolt [2x] - - 22 N.m (16 lb ft) Drive Motor Battery Charger Bracket Replacement

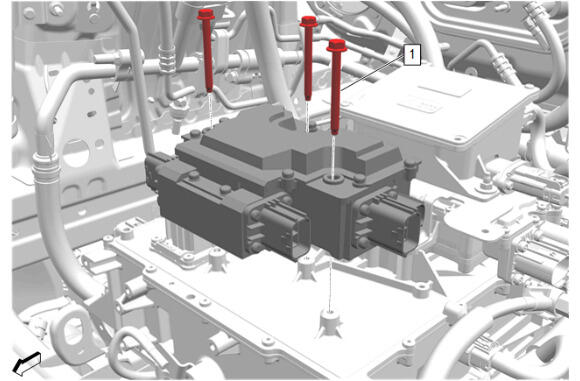

GM6148586Courtesy of GENERAL MOTORS COMPANY
Hybrid/Electric Vehicle Battery Charging Disconnect Module Relay Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Module Relay Bolt [3x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Battery Charging Disconnect Module Relay Replacement
