Riding Height

Place vehicle on smooth level surface. Bounce vehicle several times. Raise vehicle and allow to settle at normal height. Measure distance as shown in Fig 1 and Fig 2.

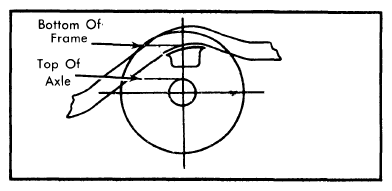

Fig 1: Rear Suspension Riding Height Measuring Point
Courtesy of GENERAL MOTORS COMPANY

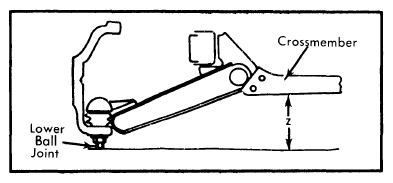

Fig 2: Front Suspension Riding Height Measuring Point
Courtesy of GENERAL MOTORS COMPANY

NOTE: Height check should be made with a full tank of gas, spare tire installed, and jack included. No passengers should be in vehicle.
Difference between measurements of each side must not be more than 1/2". If an adjustment is necessary, it can be made at bolt on height control arm.

RIDING HEIGHT SPECIFICATIONS

Application	Front	Rear
LUV	4.6"	6.0"
