Federal Models

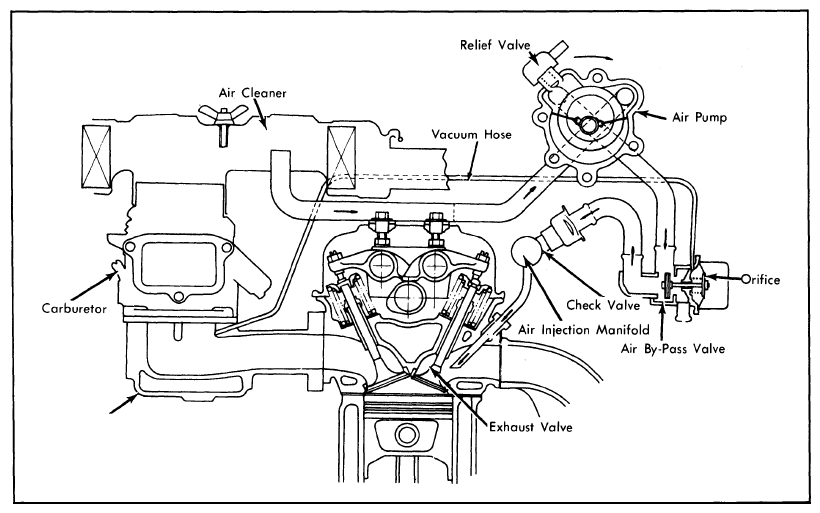

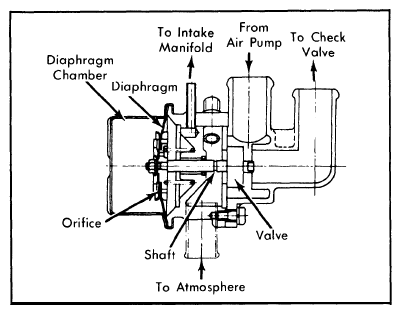

Located between air pump and injection manifold, by-pass valve controls secondary air flow. Purpose of by-pass valve is to prevent afterburning during deceleration. This is accomplished by cutting secondary air flow to exhaust system when high intake manifold vacuum level is sensed at by-pass valve. Secondary air is dumped to atmosphere. This prevents additional burning of rich fuel mixture caused when throttle blades close initially upon deceleration.
