Description & Operation: Notes
The catalytic converter(s) is installed in the exhaust system in front of the muffler so that all exhaust gas must pass through the converter(s). The converter is a stainless steel muffler shopped device that reduces exhaust emissions. There are two types of catalytic converters, oxidation and three-way converters. The oxidation converter contains material coated with platinum and palladium. This catalyst reduces hydrocarbons (HC) and carbon monoxide (CO) emissions. The three-way converters contain material coated with platinum, palladium and Rhodium. This catalyst reduces hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx).

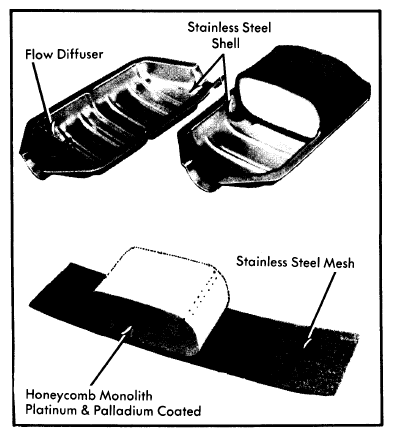

The catalyst may be one of 2 types: a honeycomb-type block that is non-serviceable, or small ceramic beads that can be removed and replaced.
