Idle/Throttle Speed Control Unit: Testing and Inspection

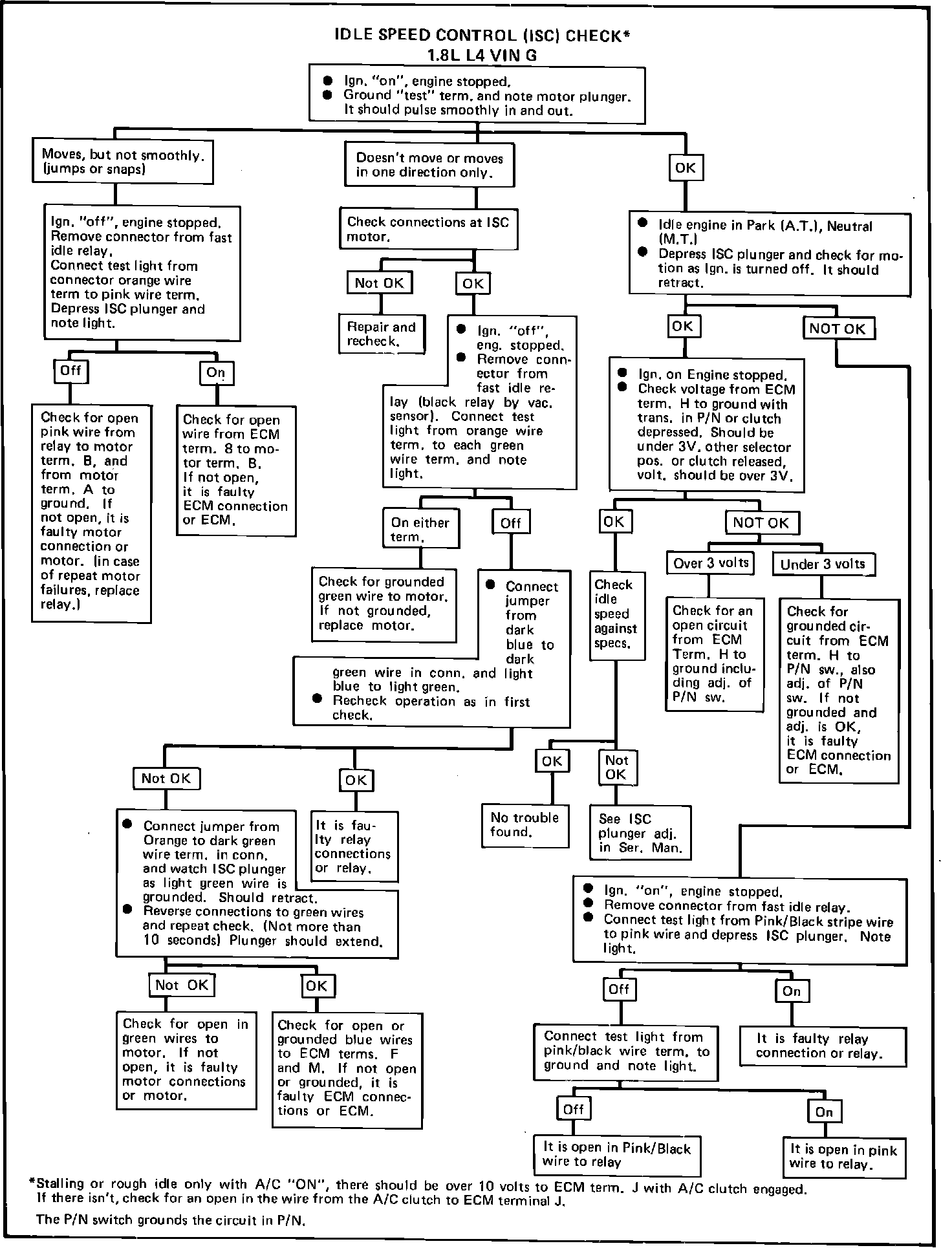

Fig. 031 CHART C-2C IDLE SPEED CONTROL (ISC) CHECK:
