Oxygen Sensor: Locations

Engine Views.:

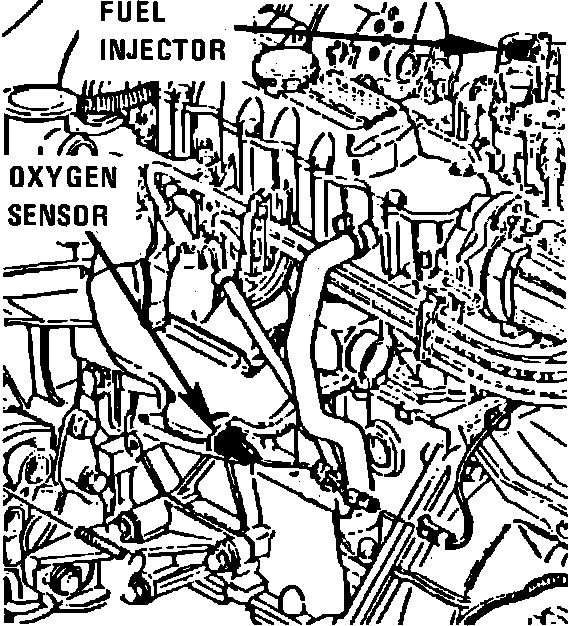

LH Side Of Engine In Exhaust Manifold

Applicable to: 1982 4-112/1.8L OHC Engine

LH Side Of Engine.:

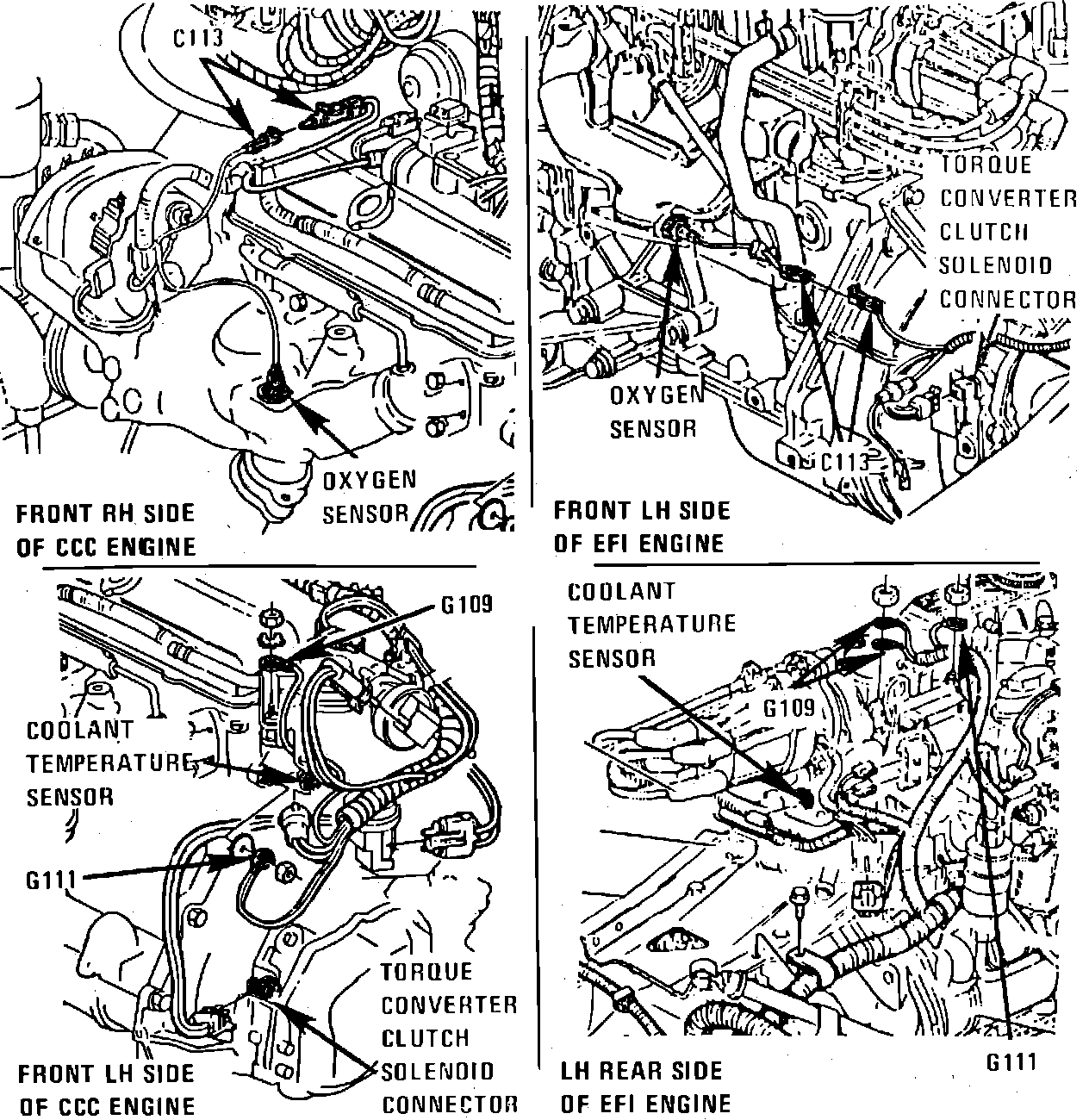

LH Side Of Engine In Exhaust Manifold

Applicable to: 1983 4-112/1.8L OHC Engine

LH Side Of Engine.:

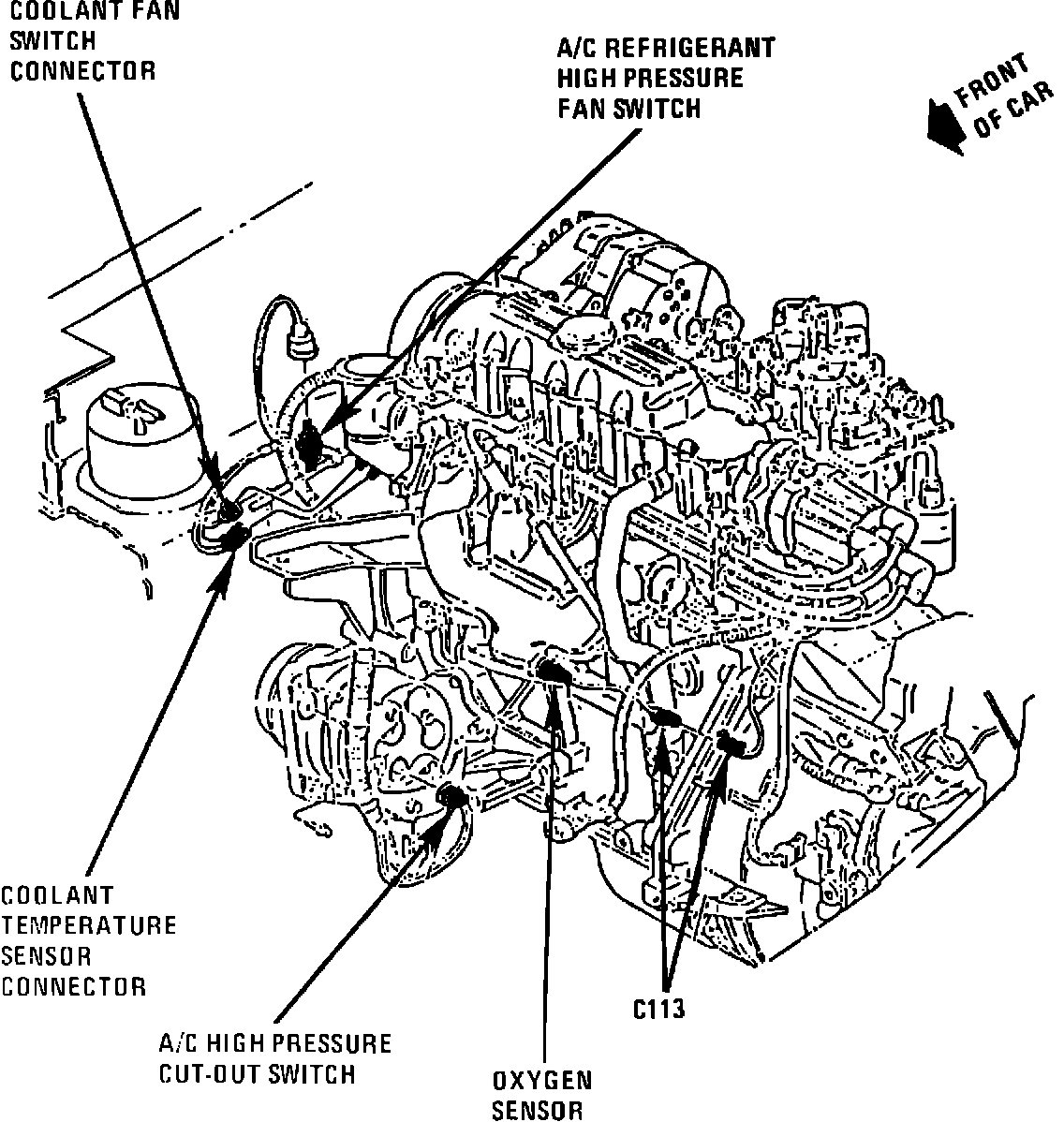

LH Side Of Engine In Exhaust Manifold

Applicable to: 1985 4-112/1.8L OHC Engine
