Torque Specifications

82 cavalier

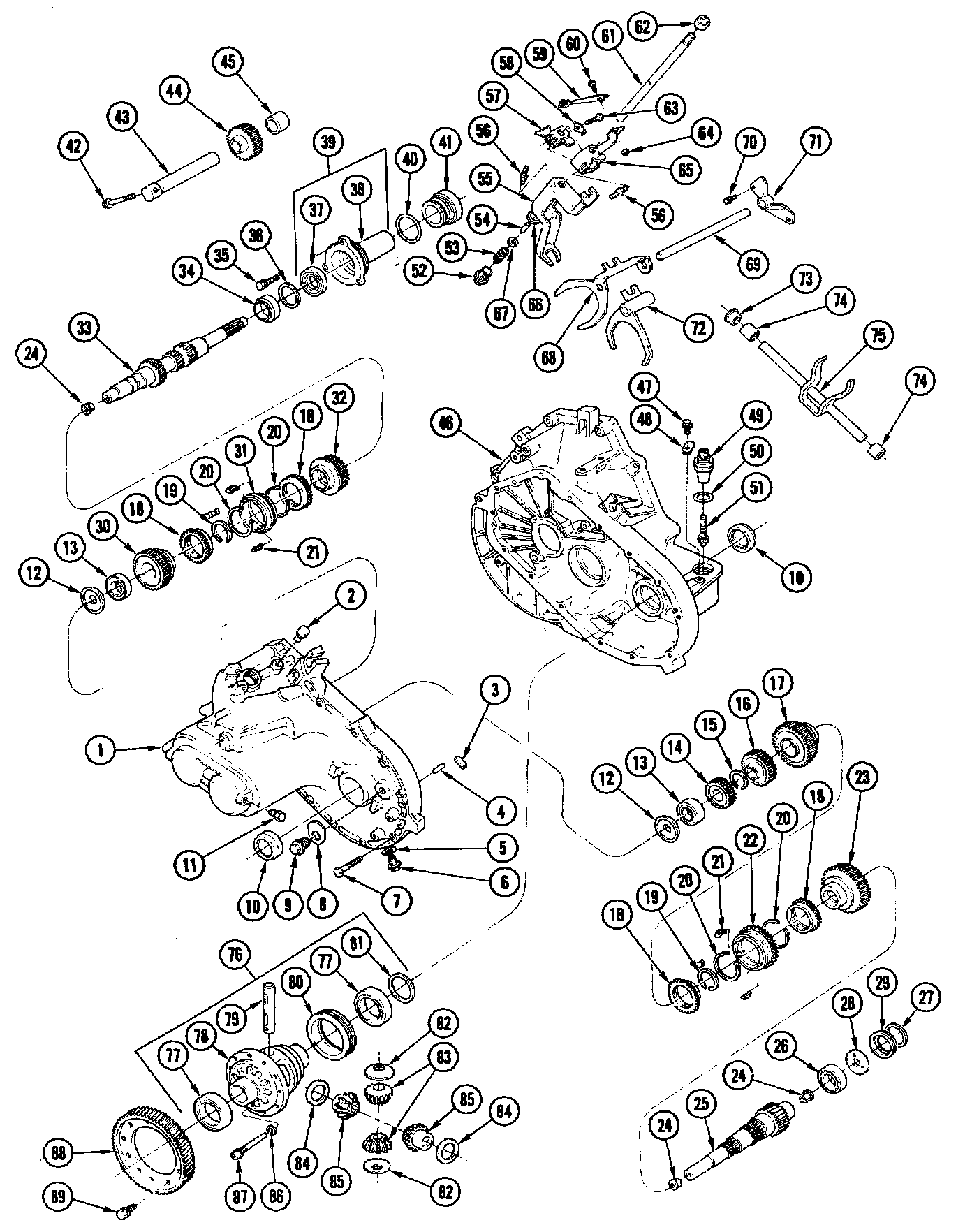

Transaxle Exploded View:

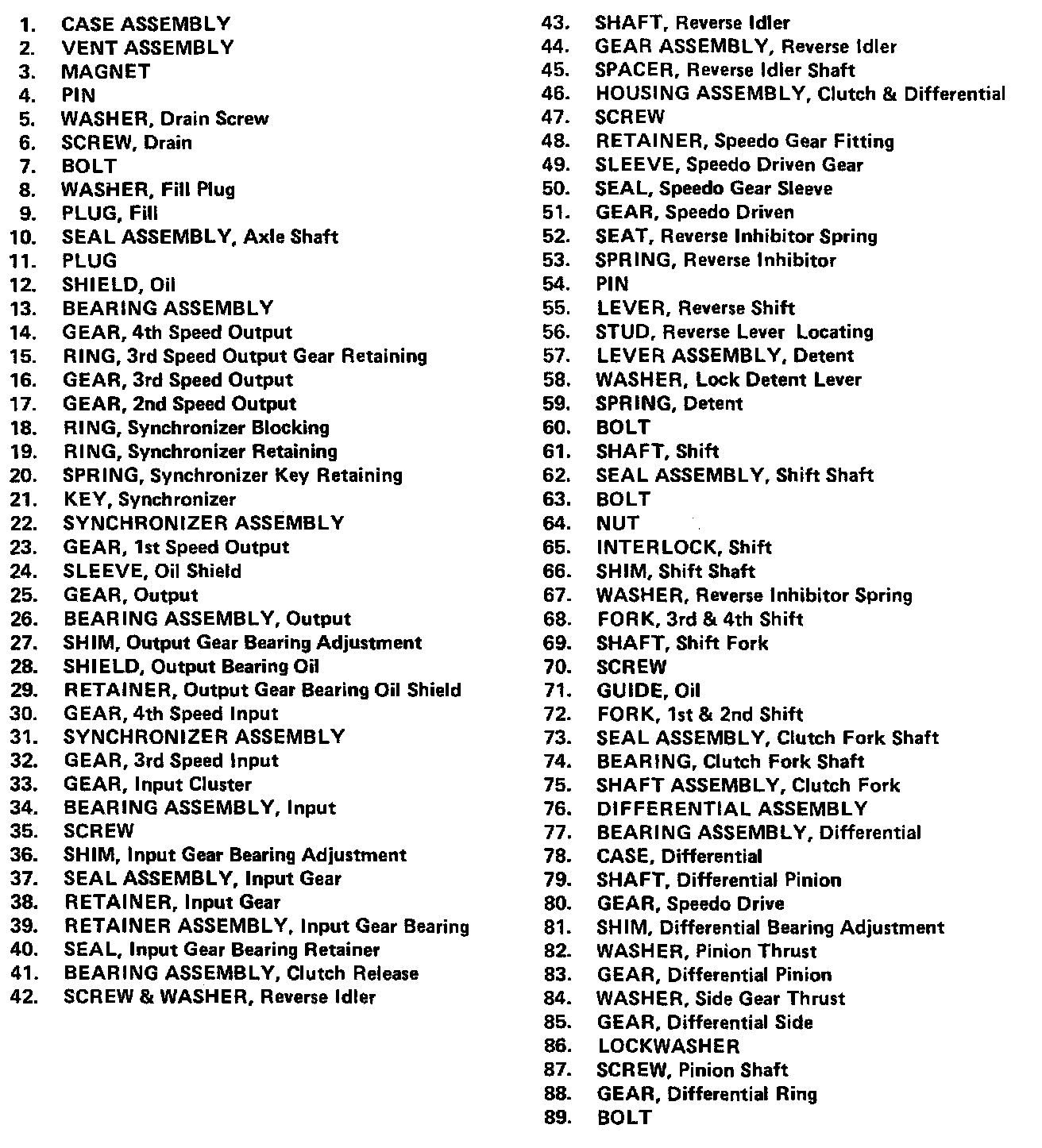

Exploded View Continued:

Input Shaft RH

Bearing Retainer 9 N.m (7 FT. LBS.)

Reverse Idler Shaft

Lock Bolt 21 N.m (16 FT. LBS.)

Reverse Inhibitor

Fitting 35 N.m (26 FT. LBS.)

Case-to-Cover Bolts 21 N.m (16 FT. LBS.)

Ring Gear Bolts 73 N.m (54 FT. LBS.)

Pinion Shaft Lock Bolts 9 N.m (7 FT. LBS.)

Transaxie Mount 50 N.m (40 FT. LBS.)

Transaxie Strut 40 N.m (30 FT. LBS.)

Transaxie to Engine 75 N.m (55 FT. LBS.)

Control Assembly 25 N.m (20 FT. LBS.)
