Clearance and Design Specifications

Specifications

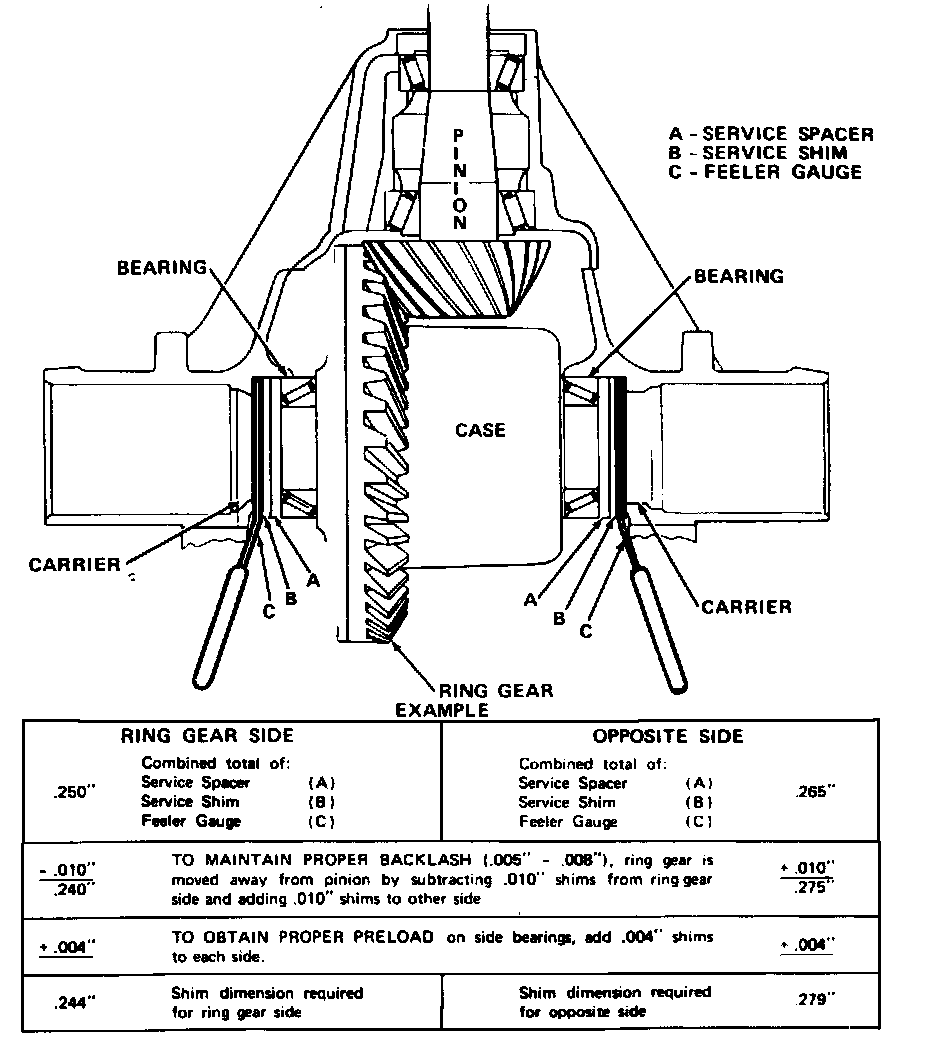

Side Bearing Shim Requirements:





Specifications Chart:

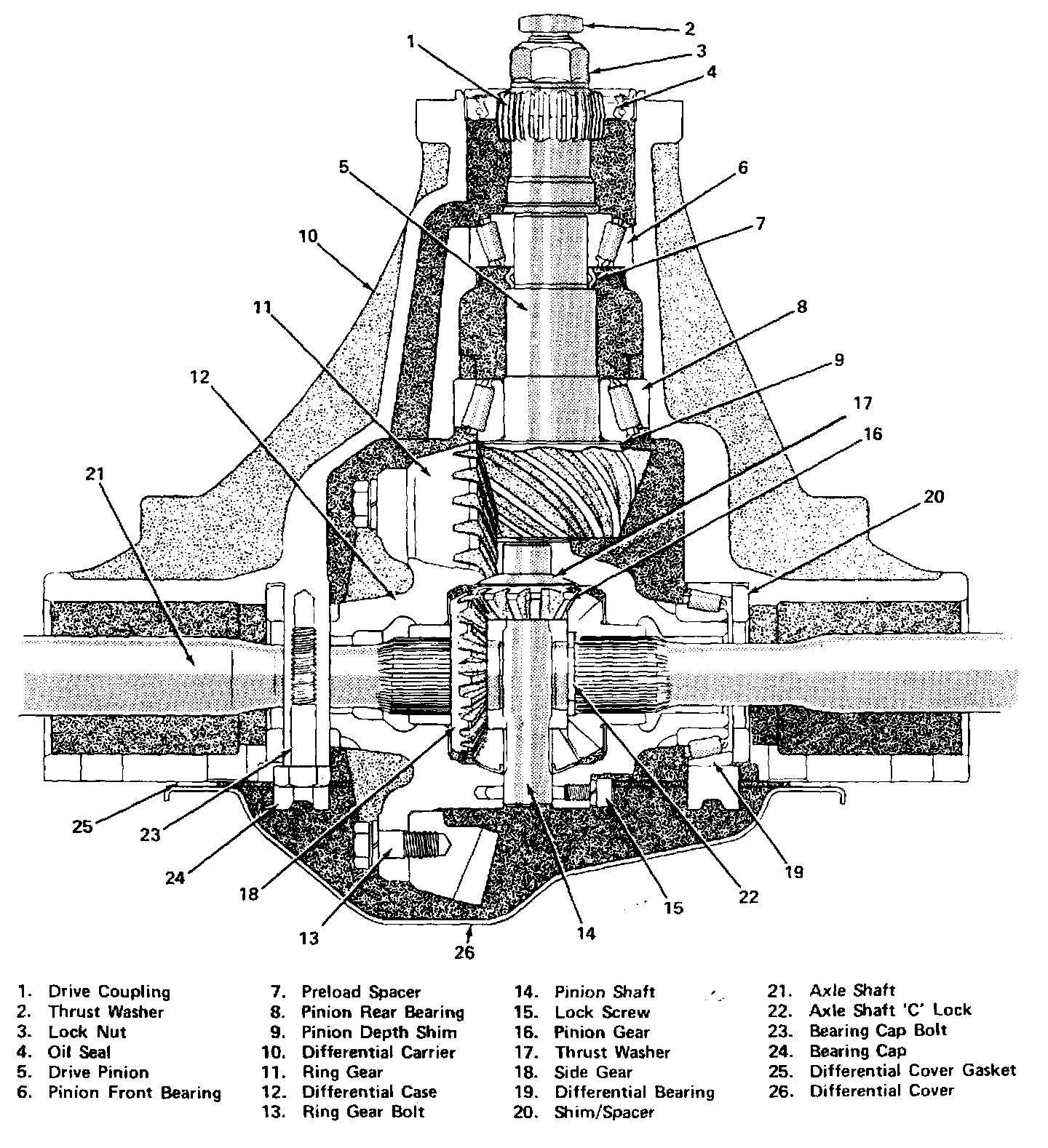

Differential Cross Section:
