Minimum Function System (W/Vacuum Adv. Distributor)

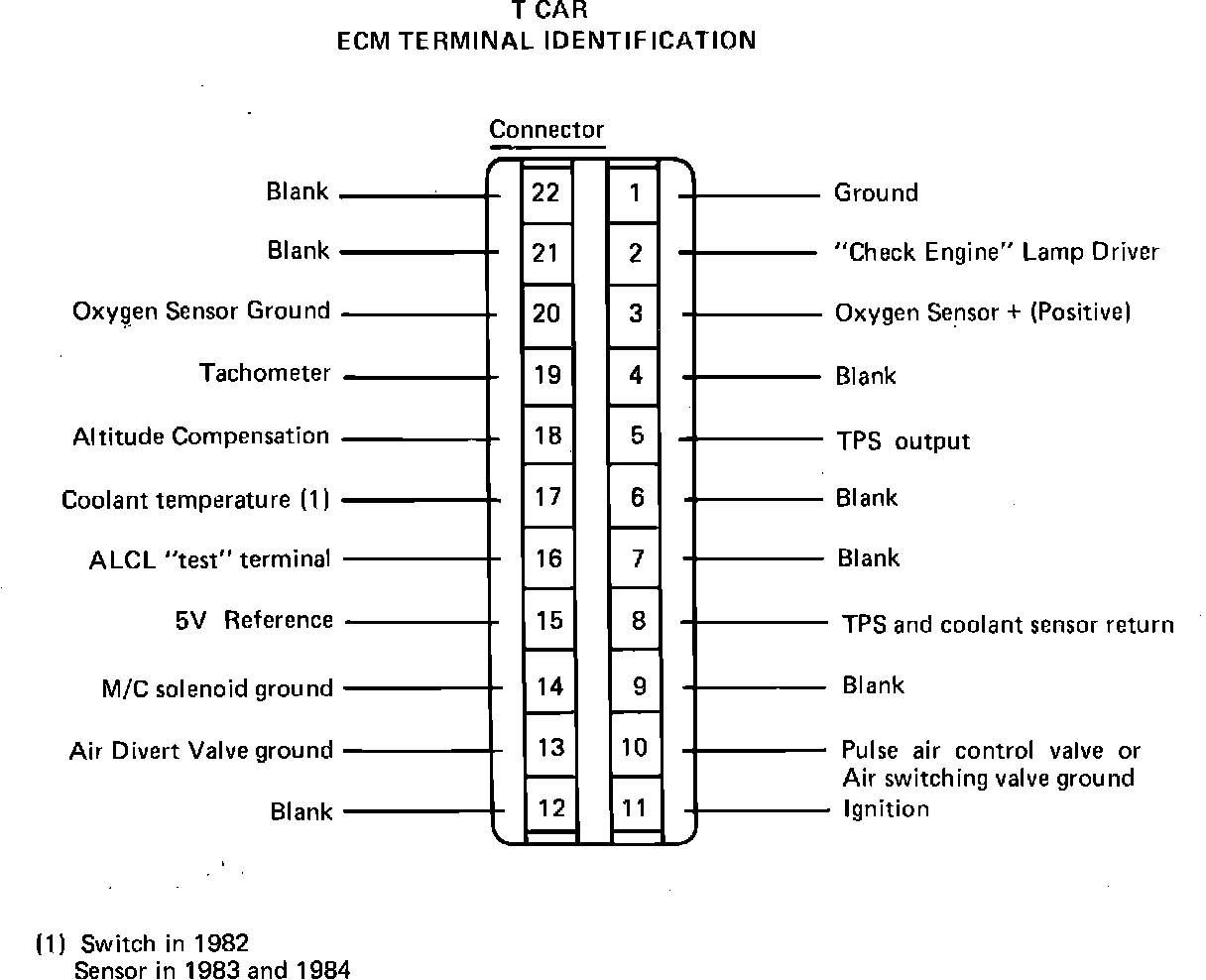

Fig. 064 - ECM CONNECTOR TERMINAL I.D. & WIRING DIAGRAMS:
