Tilt Column - Column Shift - Without Key Release

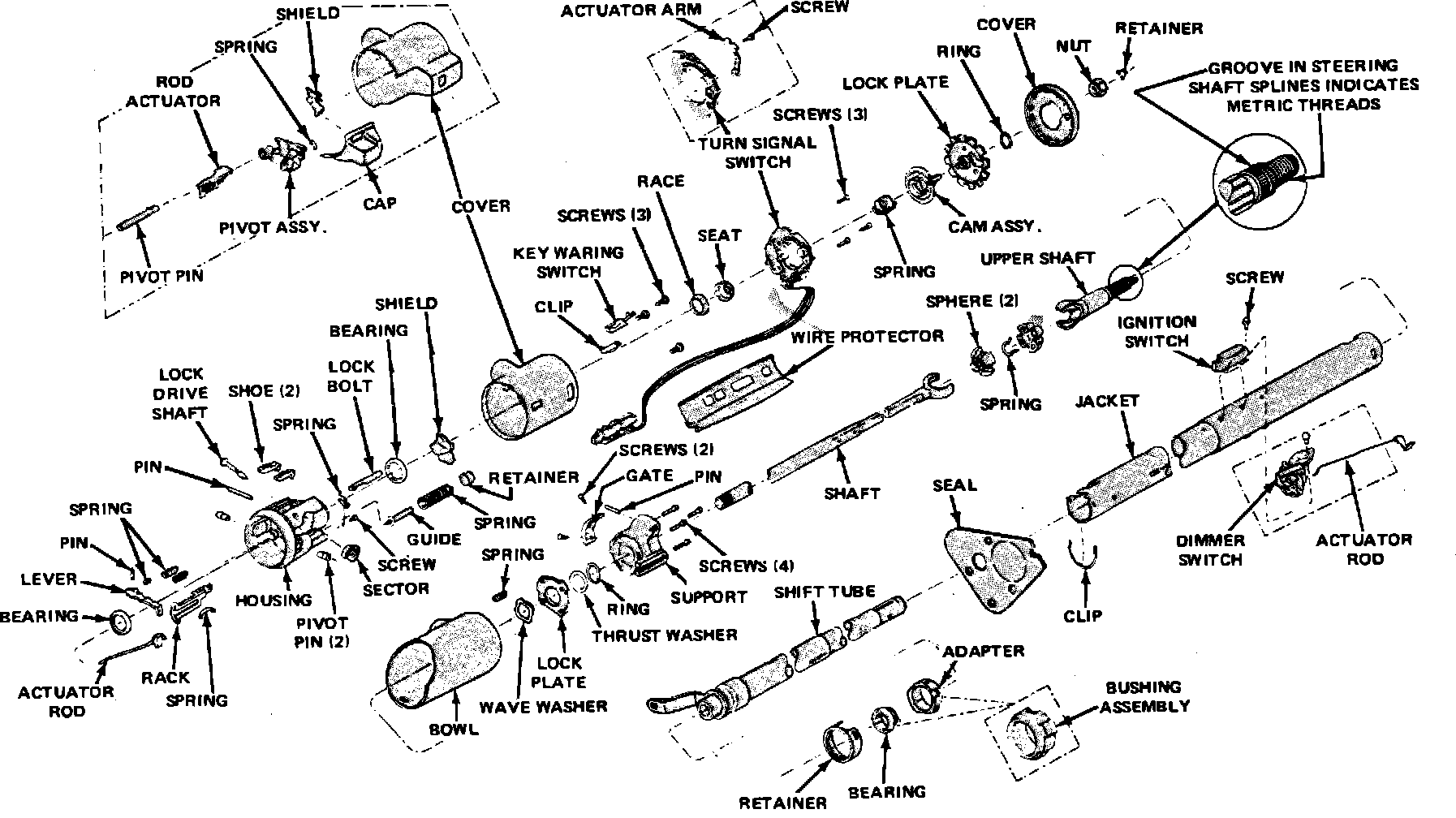

Fig. 22 Tilt steering column exploded view. Models w/column shift less key release:
