Throttle Position Sensor: Locations

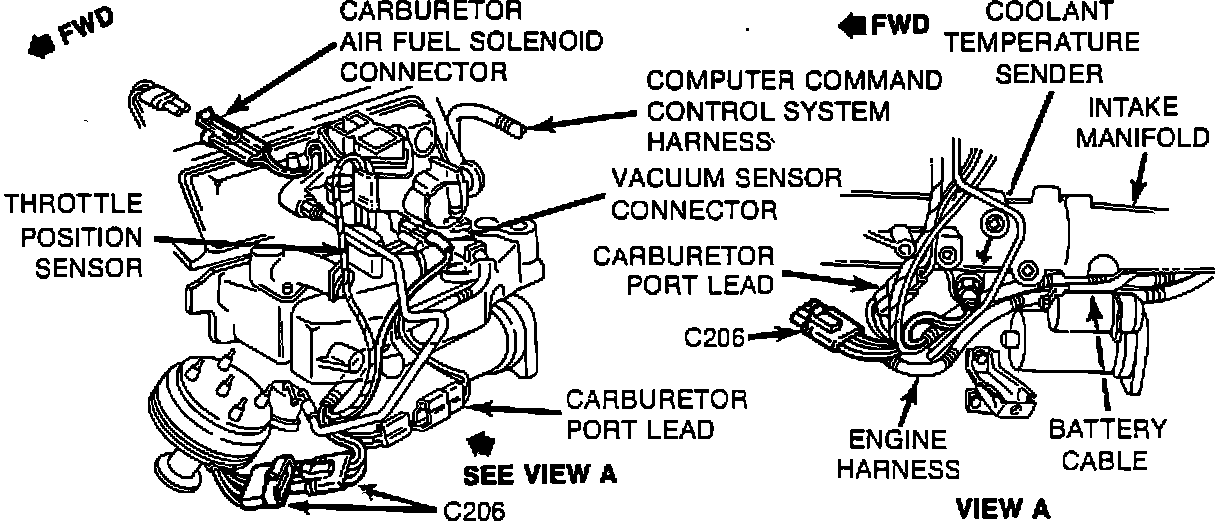

LH Side Of Engine.:

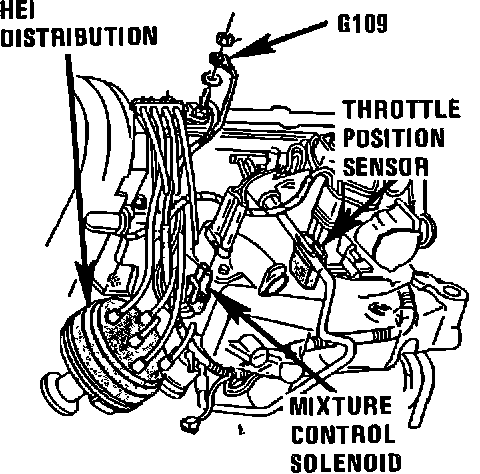

Distributor Wiring.:




LH Side Of Engine, Above Distributor

Applicable to: Gasoline Engine
