Barometric Pressure Sensor: Locations

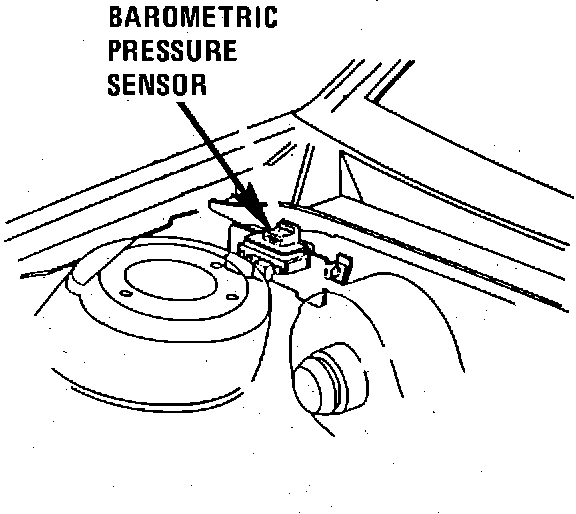

RH Side Of Engine Cowl.:

RH Side Of Engine Cowl

Applicable to: 1981-84 Citation w/V6 Engine

Engine & Underhood Components (Part 1 Of 3).:

Engine & Underhood Components (Part 2 Of 3).:

Engine & Underhood Components (Part 3 Of 3).:

RH Side Of Engine Cowl

Applicable to: Citation w/V6 Engine
