Cooling System

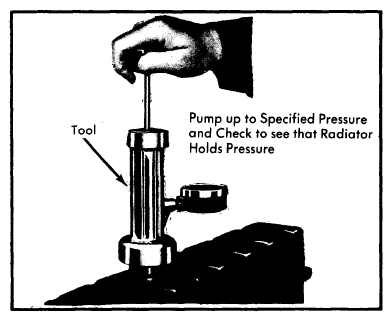

With engine not running, wipe radiator filler neck seat clean. Fill radiator to correct level. Attach tester to radiator and pump until pressure is at upper limit of radiator rating. If pressure drops, inspect for external leaks. If no leaks are apparent, detach tester and run engine until normal operating temperature is obtained. Reattach tester and observe. If pressure builds up immediately, a possible leak exists from a faulty head gasket or crack.
If there is no immediate pressure build up, pump tester to within system pressure range (on radiator cap). Vibration of gauge pointer indicates compression or combustion leak into cooling system. Isolate leak by shorting each spark plug wire to cylinder block. Gauge pointer should stop or decrease vibration when leaking cylinder is shorted.
Remove engine and transmission (automatic only) oil dipsticks and check if water globules appear in oil. If so, a serious internal leak is indicated. If all checks are negative and system holds pressure for 2 minutes, there are no serious leaks in system.
