Diagnostic Notes

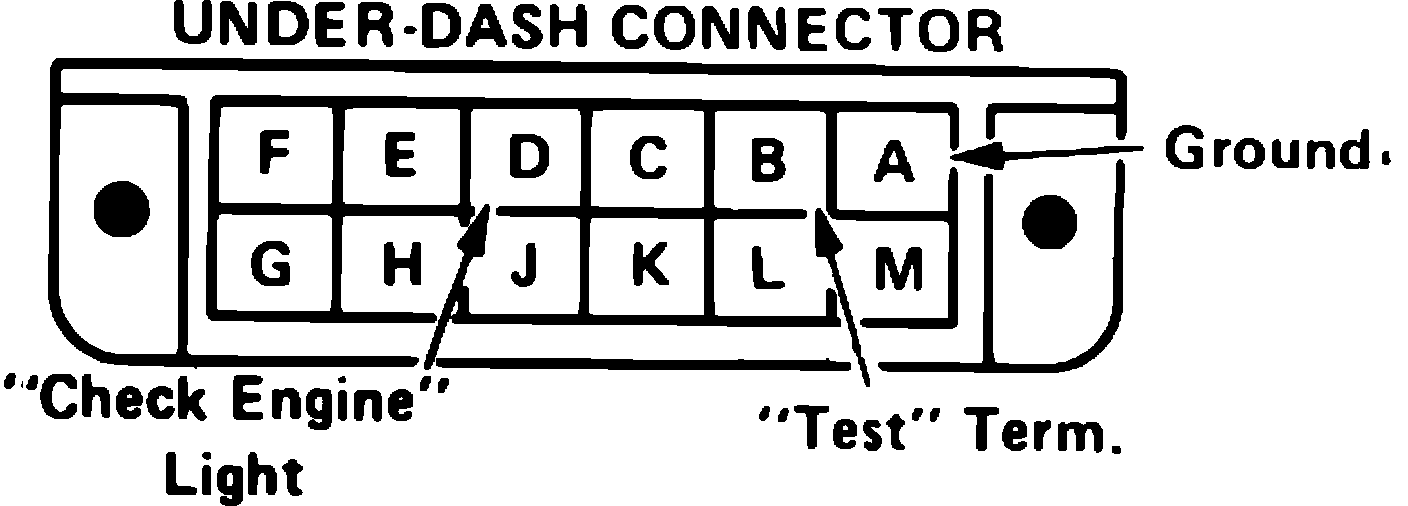

Fig. 10 12 terminal under-dash connector with ``Test'' terminal:

Refer to HEI Diagnostic Charts for diagnostic procedures.

NOTE: Diagnostic charts and test procedures refer to "Test" terminal, the "Test" terminal is located in a 12 terminal connector located under the dashboard, Fig. 10.
