Diverter Valve Check

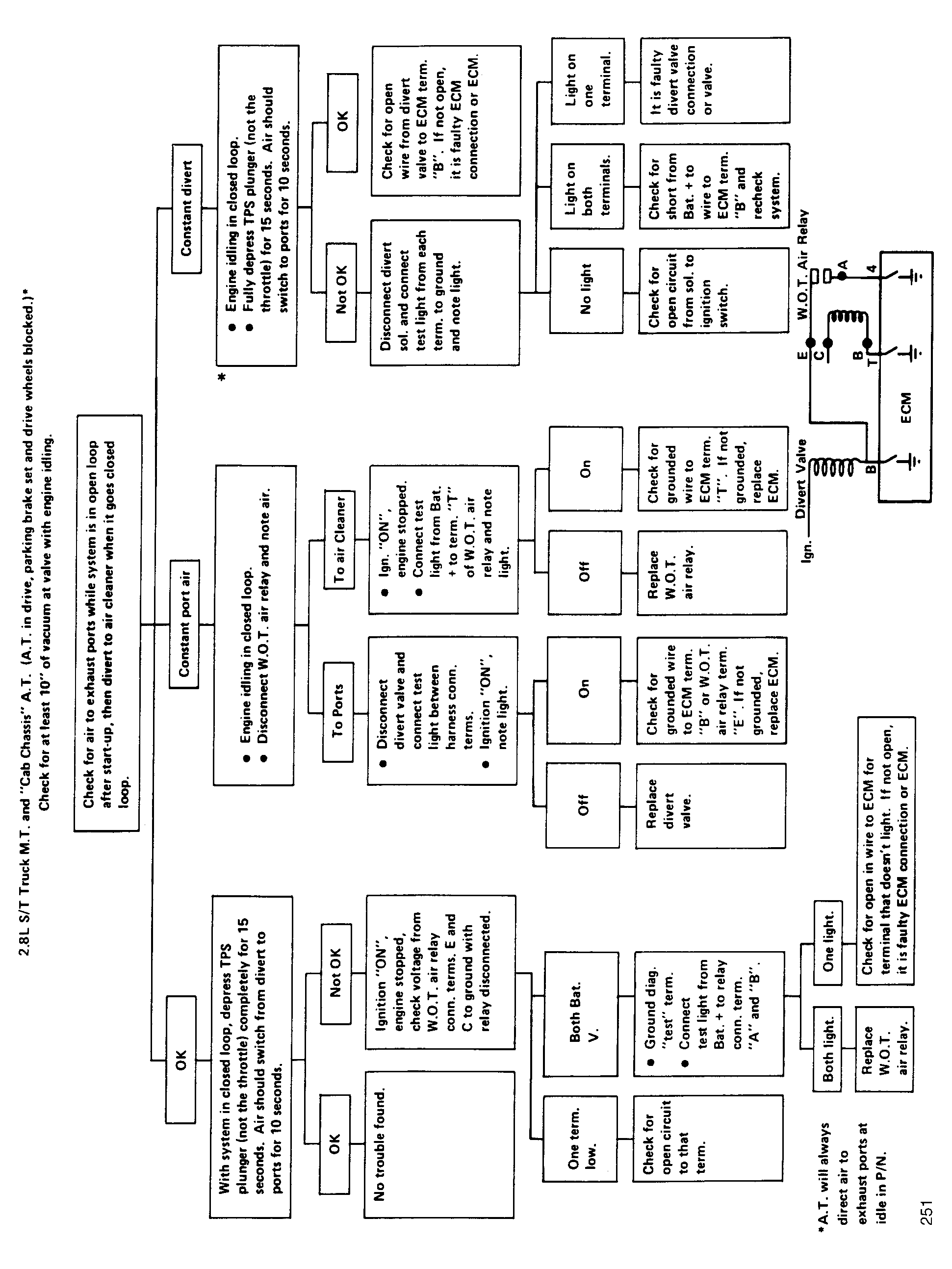

Fig 1: Flow Chart - Divert Valve Check
G251

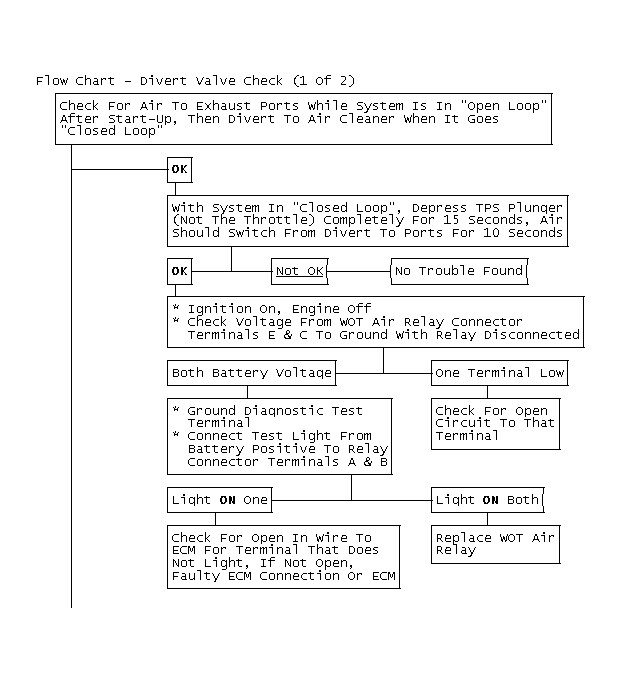

Fig 2: Flow Chart - Divert Valve Check (1 Of 2)
GB0046395

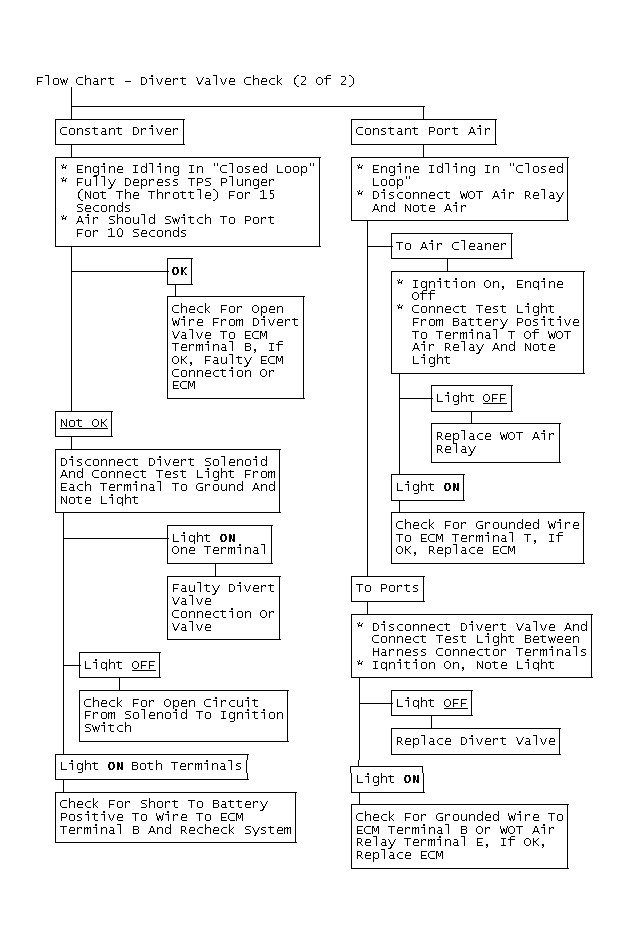

Fig 3: Flow Chart - Divert Valve Check (2 Of 2)
GB0046396
