Glow Plug Relay 1 or 2

With a circuit tester, make a continuity test across terminals "C" and "D" with battery voltage applied to terminals "A" and "B". Replace relay if no continuity is indicated.

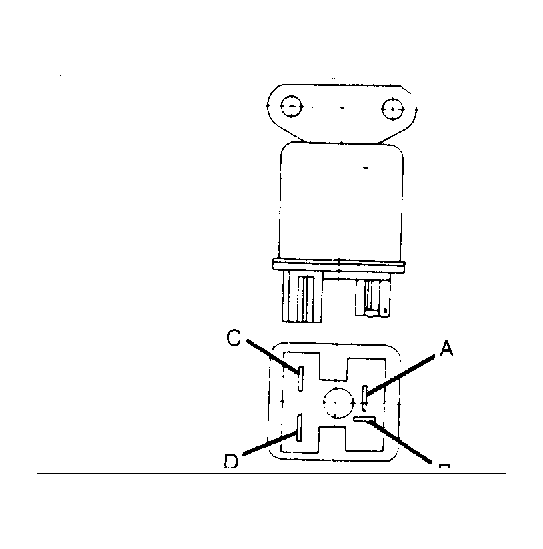

Fig 1: Glow Plug Relay Terminal Locations
G3335
