System Specifications

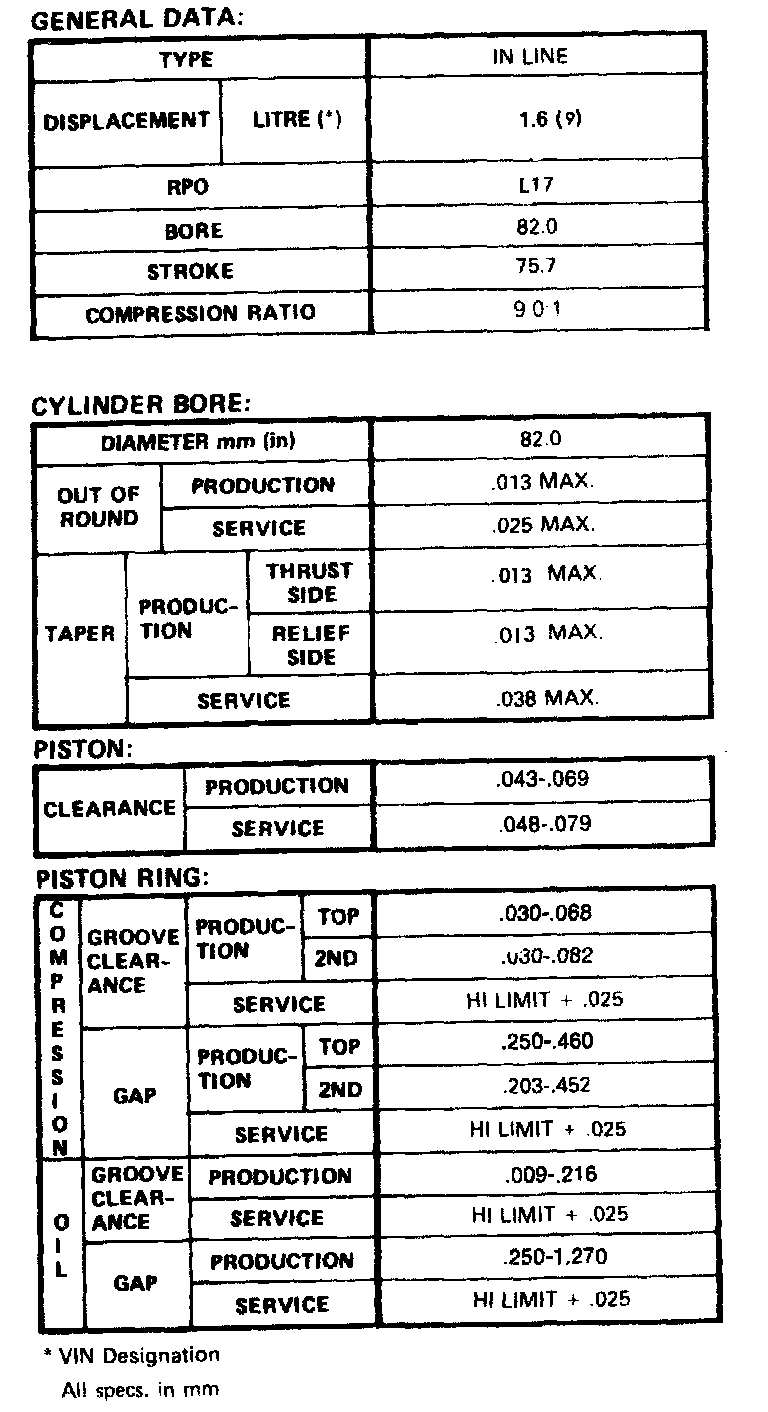

Engine Specifications:

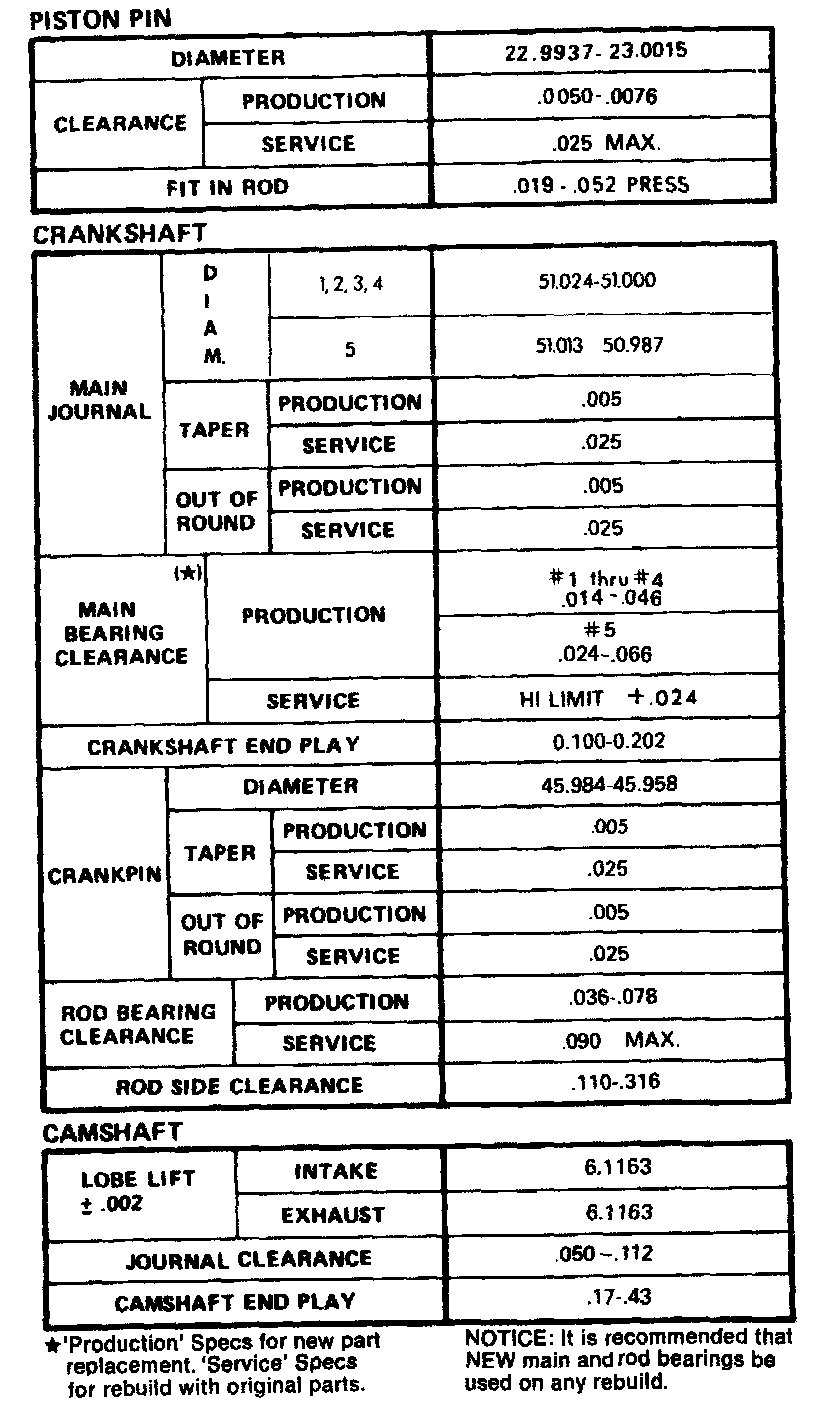

Continued Engine Specifications:

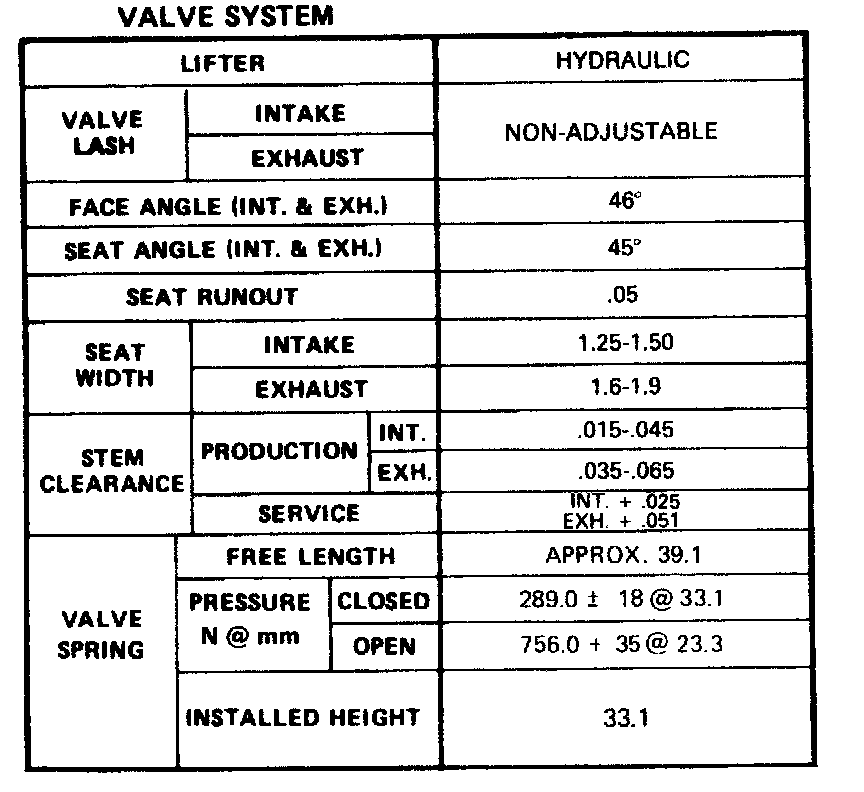

Continued Engine Specifications:

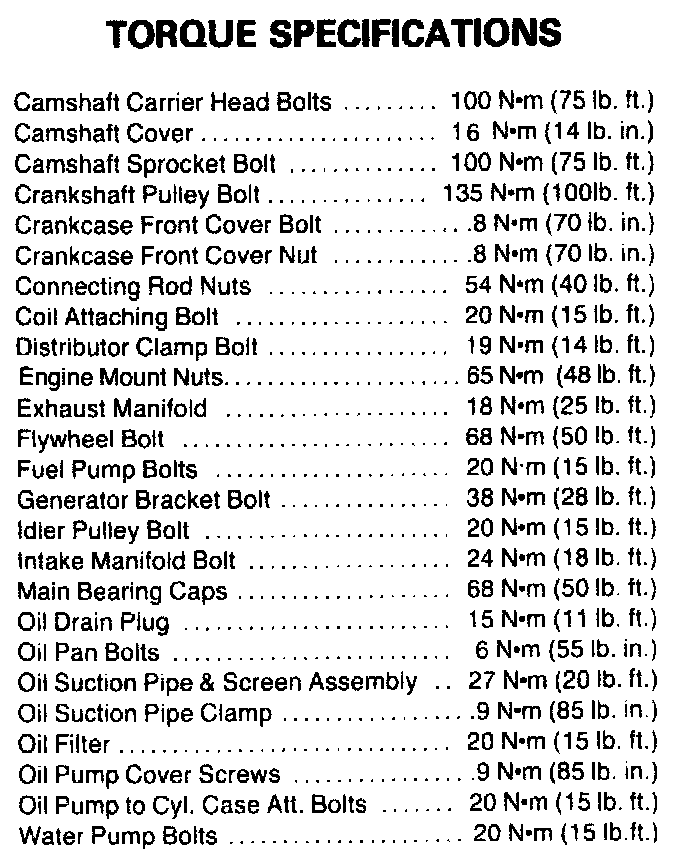

Torque Specifications:

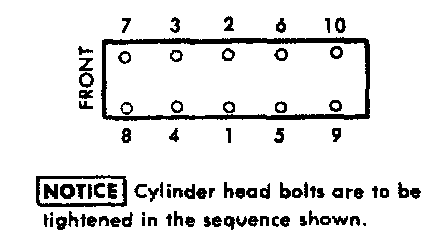

Cylinder Head Sequence:
