Toe-In Adjustment: Rear

Adjust rear wheel toe after rear camber has been set. To adjust, loosen boot and lock nut near outer end of tie rod. Rotate tie rod with tool clamped to serrated area to obtain specified toe. Tighten lock nut. Adjust boot to cover lock nut and serrations.

Fig 1: Toe-In Adjuster Tube Clamp & Bolt Positions

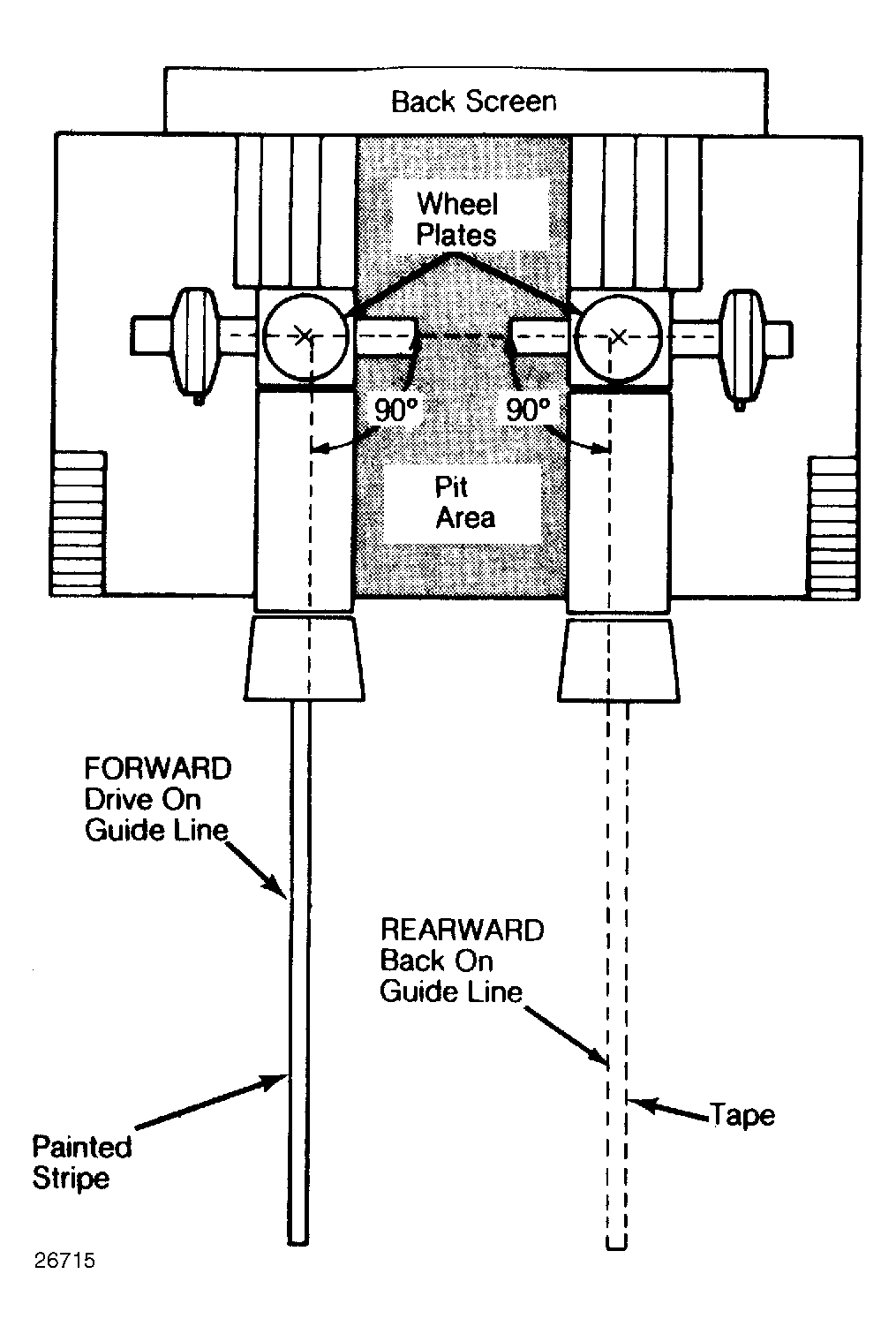

Fig 2: Typical Alignment Machine Set Up For Rear Wheel Alignment
