Wiring Diagrams

Fig 1: Pulse Width Modulated EGR Control Circuit Wiring Diagram
G13597
Fig 2: EGR Control Circuit Wiring Diagram (5.0L V8 - VIN Y & 9)
G13598

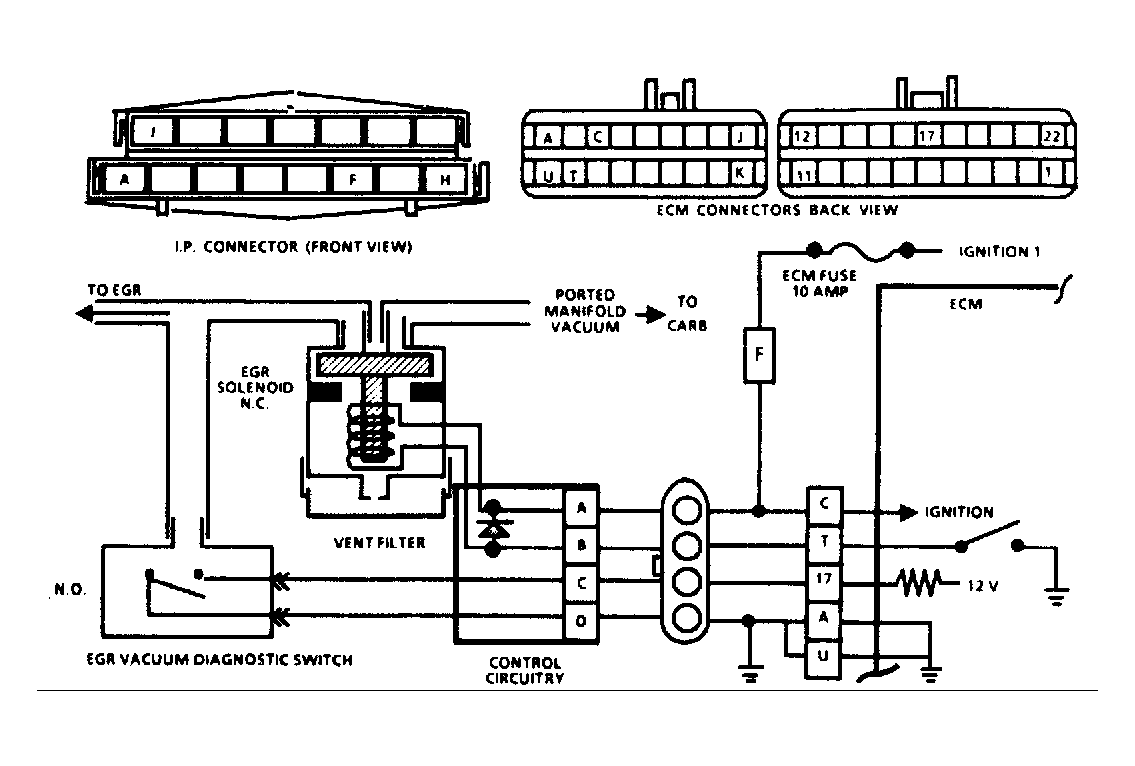

Fig 3: EGR Control Circuit Wiring Diagram (Carbureted 3.0L V6)
G13599
